Elta EC Trickle & Boost Controller
Elta EC Trickle & Boost Controller
£332.19
SKU: 149-EC-TB

Elta EC Trickle & Boost Controller

0-10V EC controller
Trickle and boost
BMS enable and fan fail relay
Estimated delivery
112 in stock
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Model 149-EC-TB
Brand Elta
Type EC trickle and boost controller
Supply 230VAC
Output 0-10VDC to fan
Inputs 0-10V auxiliary, volt free boost, volt free remote enable
Fan monitoring Tacho or fan fault relay
Fail relay Volt free, rated 8A 230VAC
Enclosure IP56
Warranty 1 Year Manufacturer

Summary

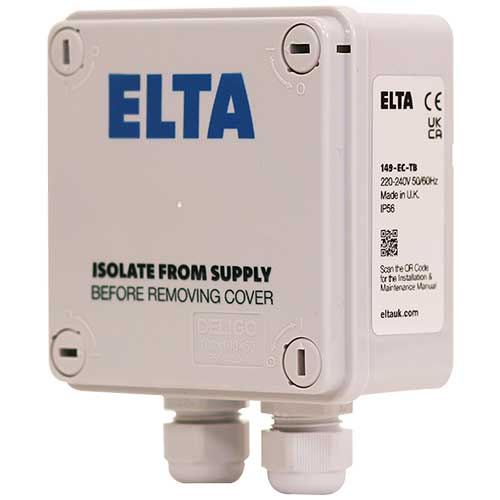

The Elta 149-EC-TB is a BMS ready trickle and boost controller for EC fans. It sends a 0-10V speed signal to the fan, with the run (trickle) speed set on a control knob and an adjustable boost speed triggered by volt free contacts, and it monitors the fan by tacho or fault relay.

It has a 0-10V auxiliary input for a sensor or BMS, volt free remote enable, a fan fail relay with volt free contacts rated 8A 230VAC, LEDs for boost activation and fan fail, and an IP56 surface mounted enclosure. It runs on 230VAC, suits ambient temperatures up to 40°C and carries a 1 year Elta guarantee.

See more specification See less specification

The Elta 149-EC-TB is a BMS ready trickle and boost controller for EC fans. It sends a 0-10V speed signal to the fan, with the run (trickle) speed set on a control knob and an adjustable boost speed triggered by volt free contacts, and it monitors the fan by tacho or fault relay.

It has a 0-10V auxiliary input for a sensor or BMS, volt free remote enable, a fan fail relay with volt free contacts rated 8A 230VAC, LEDs for boost activation and fan fail, and an IP56 surface mounted enclosure. It runs on 230VAC, suits ambient temperatures up to 40°C and carries a 1 year Elta guarantee.

  • 0-10V EC controller
  • Trickle and boost
  • BMS enable and fan fail relay

What it is best used for

Commercial EC fan installations that need trickle and boost under building control: washrooms and toilet cores boosted by PIR, meeting rooms boosted by a CO2 sensor, kitchens and plant rooms where the BMS needs a fan fail signal. Pair it with a 0-10V sensor such as the Elta 149-EC-CO2TH3M for demand controlled ventilation.

It is for EC fans only, not for AC motors on voltage control. For a simple wall knob or a local trickle and boost switch with no BMS connection, the 149-POT-10-MI or 149-POT-10-TB do the job for less.

Why choose this over alternatives

Unlike the 149-POT-10-MI and 149-POT-10-TB, the EC-TB proves the fan is actually running (by tacho or the fan's fault relay) and gives the BMS a volt free fail signal, which matters on critical extract such as toilet cores and plant rooms.

Its 0-10V auxiliary input lets a sensor such as the 149-EC-CO2TH3M drive the fan speed, while the PIR or BMS boost and remote enable inputs take volt free contacts.

Installation notes

  • Surface mount only, in a dry sheltered position away from heat sources; do not recess mount. Maximum ambient 40°C.
  • Connect to a suitably rated fused spur, and check the fan supplied can safely be controlled by the controller.
  • Use wiring diagram 152-728: 0-10V output to the fan, tacho or fault contact back from the fan, and set the fault mode jumper to tacho or relay to match.
  • Set the trickle speed on the board knob and the boost speed on its preset during commissioning.
  • Installation by a qualified and competent electrician in line with current wiring regulations.

Browse more fan speed controllers or Elta controllers, or call us for help choosing the right product.

Specifications

Model 149-EC-TB
Brand Elta
Type EC trickle and boost controller
Supply 230VAC
Output 0-10VDC to fan
Inputs 0-10V auxiliary, volt free boost, volt free remote enable
Fan monitoring Tacho or fan fault relay
Fail relay Volt free, rated 8A 230VAC
Enclosure IP56
Warranty 1 Year Manufacturer
Indication LEDs for boost activation and fan fail
Ambient Up to 40°C, 95% RH
Mounting Surface only

Manuals & Guides

Product Description

The Elta 149-EC-TB is a BMS ready trickle and boost controller for EC fans. It sends a 0-10V speed signal to the fan, with the run (trickle) speed set on a control knob and an adjustable boost speed triggered by volt free contacts, and it monitors the fan by tacho or fault relay.

It has a 0-10V auxiliary input for a sensor or BMS, volt free remote enable, a fan fail relay with volt free contacts rated 8A 230VAC, LEDs for boost activation and fan fail, and an IP56 surface mounted enclosure. It runs on 230VAC, suits ambient temperatures up to 40°C and carries a 1 year Elta guarantee.

  • 0-10V EC controller
  • Trickle and boost
  • BMS enable and fan fail relay

What it is best used for

Commercial EC fan installations that need trickle and boost under building control: washrooms and toilet cores boosted by PIR, meeting rooms boosted by a CO2 sensor, kitchens and plant rooms where the BMS needs a fan fail signal. Pair it with a 0-10V sensor such as the Elta 149-EC-CO2TH3M for demand controlled ventilation.

It is for EC fans only, not for AC motors on voltage control. For a simple wall knob or a local trickle and boost switch with no BMS connection, the 149-POT-10-MI or 149-POT-10-TB do the job for less.

Why choose this over alternatives

Unlike the 149-POT-10-MI and 149-POT-10-TB, the EC-TB proves the fan is actually running (by tacho or the fan's fault relay) and gives the BMS a volt free fail signal, which matters on critical extract such as toilet cores and plant rooms.

Its 0-10V auxiliary input lets a sensor such as the 149-EC-CO2TH3M drive the fan speed, while the PIR or BMS boost and remote enable inputs take volt free contacts.

Installation notes

  • Surface mount only, in a dry sheltered position away from heat sources; do not recess mount. Maximum ambient 40°C.
  • Connect to a suitably rated fused spur, and check the fan supplied can safely be controlled by the controller.
  • Use wiring diagram 152-728: 0-10V output to the fan, tacho or fault contact back from the fan, and set the fault mode jumper to tacho or relay to match.
  • Set the trickle speed on the board knob and the boost speed on its preset during commissioning.
  • Installation by a qualified and competent electrician in line with current wiring regulations.

Browse more fan speed controllers or Elta controllers, or call us for help choosing the right product.

Specifications

Model 149-EC-TB
Brand Elta
Type EC trickle and boost controller
Supply 230VAC
Output 0-10VDC to fan
Inputs 0-10V auxiliary, volt free boost, volt free remote enable
Fan monitoring Tacho or fan fault relay
Fail relay Volt free, rated 8A 230VAC
Enclosure IP56
Warranty 1 Year Manufacturer
Indication LEDs for boost activation and fan fail
Ambient Up to 40°C, 95% RH
Mounting Surface only

Manuals & Guides

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What does the Elta 149-EC-TB do?

It runs an EC fan at a set trickle speed, boosts it to an adjustable speed from volt free contacts, monitors the fan and signals a failure through a volt free relay.

Can the 149-EC-TB connect to a BMS?

Yes. It has volt free remote enable and boost inputs, a 0-10V auxiliary input and a volt free fan fail relay.

How does it detect a fan failure?

By the fan's tacho signal or the fan's own fault relay, selected with a jumper on the board.

Can a CO2 or humidity sensor control the fan speed?

Yes, through the 0-10V auxiliary input, for example from the Elta 149-EC-CO2TH3M room sensor.

What is the IP rating of the 149-EC-TB?

IP56. It must still be surface mounted in a dry sheltered position, with ambient temperature up to 40°C.

Does the 149-EC-TB work with AC fans?

No. It is for EC fans with a 0-10V speed input.
