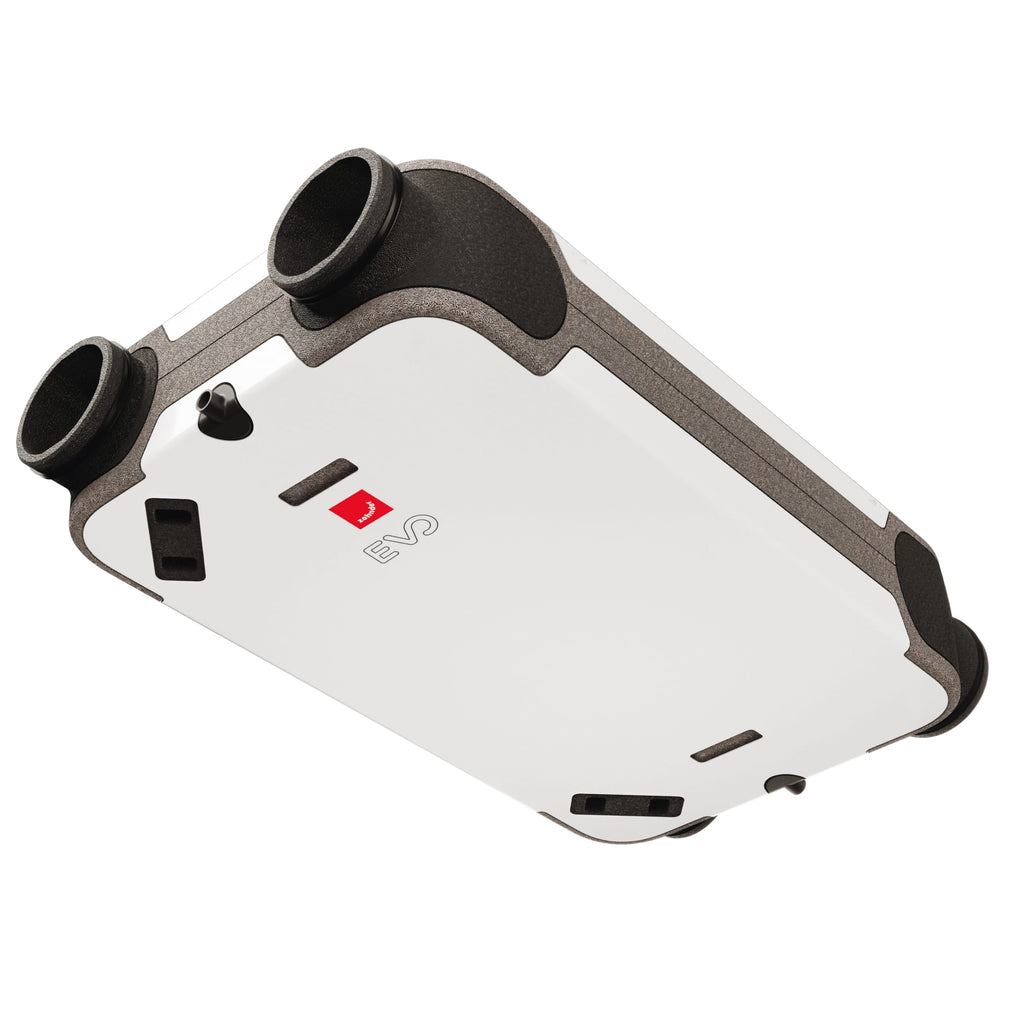

Zehnder EVO 2 Compact Heat Recovery Unit - 471100149
Product Description

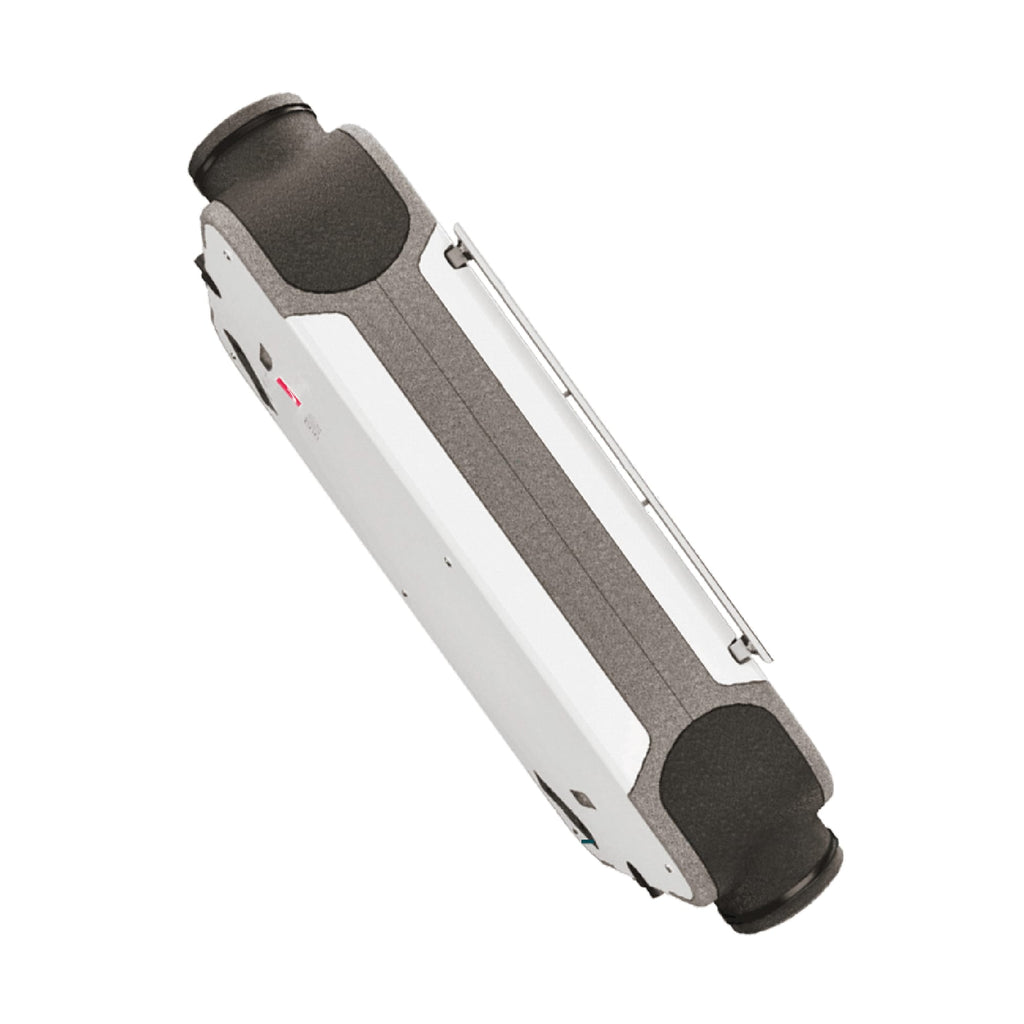

- Ultra-compact 210 mm depth — fits even the shallowest suspended ceiling void
- 100% full and filtered automatic summer bypass
- Wall or ceiling mountable, left or right hand
- Rotatable spigots for flexible duct routing
- Tool-free filter access
- Wireless RF control as standard, ModBus/KNX BMS options
- Passive House certified
The Zehnder EVO 2 is a balanced mechanical ventilation unit with heat recovery, sized for studio flats, 1–2 bed apartments and smaller dwellings where every millimetre of ceiling void matters. At just 210 mm deep with the condensate fall built into the casing, it slides into voids that no other MVHR in its class will fit.
EC motors hold a constant commissioned flow rate as the filters load, so Part F duty is maintained between filter changes. The summer bypass is fully filtered — pollen and particulates stay out during warm-night purge — and an A+ SEC rating keeps EPC modelling clean. At 19 dB(A) on low speed, it's quiet enough for bedroom-adjacent installs.
Four variants available: standard, factory-handed pre-heater (for external temperatures below -10°C), mirror-handed pre-heater, and an enthalpy exchanger version that recovers moisture as well as heat.
Suitable for
- Studio flats
- 1–2 bed apartments
- Small new builds
- Retrofit projects where ceiling-void depth is the limiting factor.
Installation

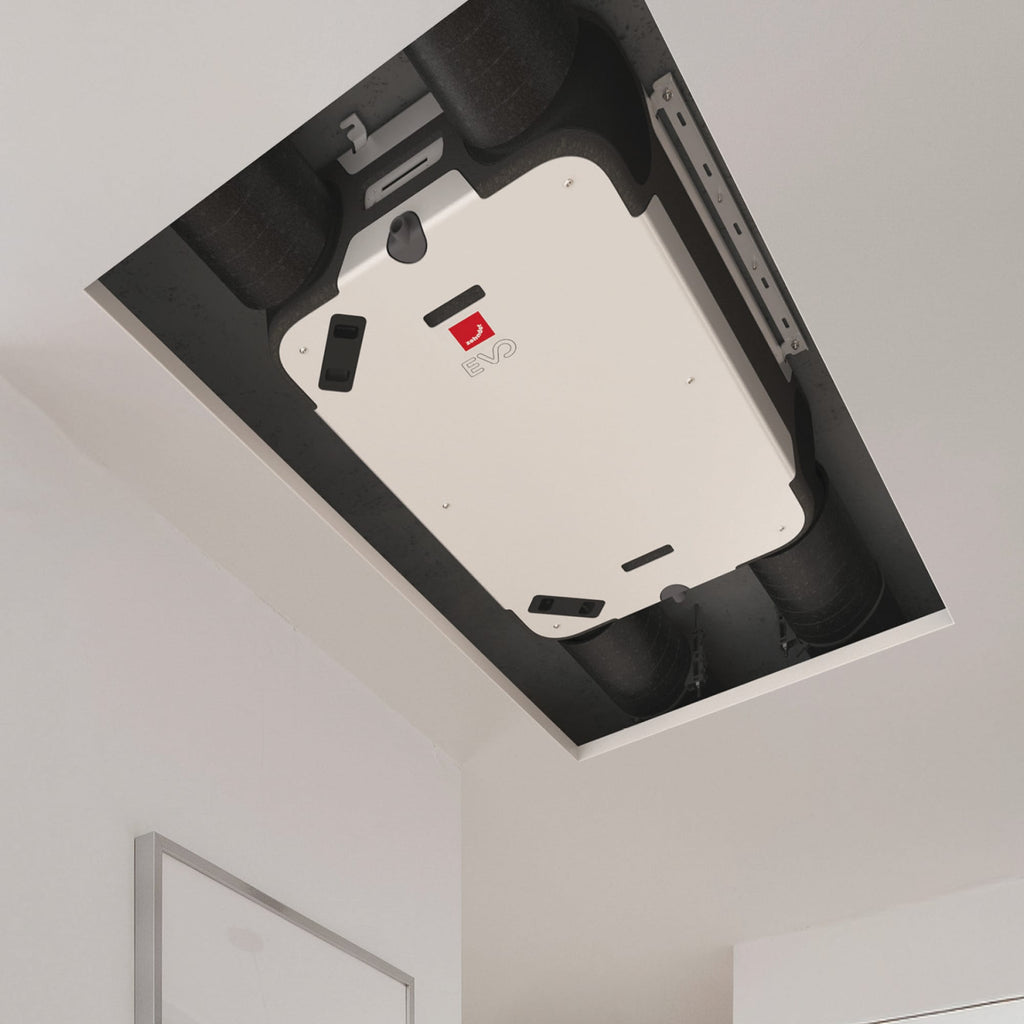

Wall or horizontal ceiling mounting. Integrated condensate fall — no shimming required. 160 mm external duct connections, rotatable spigots. Wired by a qualified electrician via the supplied flying lead.
Specifications
| Brand | Zehnder |
| Air flow range | 85–155 m³/h |
| Heat recovery efficiency | 89% max (SAP 2009) / 86% (SAP 2012) |
| Specific Fan Power | 0.62 W/l/s |
| SEC class | A+ |
| Dimensions (L × W × H) | 1000 × 600 × 210 mm |
| Weight | 24 kg |
| Duct connection | 160 mm external, rotatable |
| Filter grade | ISO Coarse G4 (ISO ePM1 F7 upgrade available) |
| Voltage | 230 V / single-phase / 50 Hz |
| Max power (with / without pre-heater) | 1150 W / 150 W |
| Sound at low speed | 19 dB(A) @ 3 m |
| IP rating | IP40 |
| Certification | Passive House certified, BS EN 13141-7:2010 |
| Warranty | 2 Year Manufacturers |
Manuals & guides
Zehnder EVO 2 Product Data Sheet
