Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Type | Gravity louvre shutter (backdraught) |
| Sizes | VK10 to VK50 (10 sizes) |
| Operation | Automatic gravity open and close |
| Material | Weather-resistant PVC (UV-robust) |
| Temperature range | -30 to +60°C |
| Max air velocity | 12 m/s |
| Colour | Light grey RAL 7035 (VK10 white RAL 9010) |
| Mounting | Vertical wall (mounting set included) |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

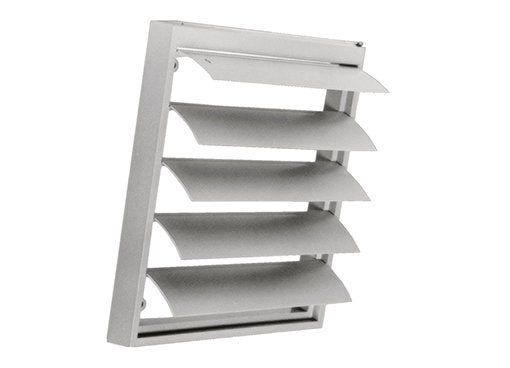

The Systemair VK Gravity Louvre Shutter is a square, wall-mounted backdraught shutter for exhaust air. Its profiled vanes create a strong upward force that lowers air resistance, so they open fully even at low air velocities and close automatically when the fan stops. It is manufactured from weather-resistant, UV-robust PVC.
- Square louvre shutter for vertical wall mounting
- For exhaust air, with automatic open and close of the vanes
- Profiled vanes open fully even at low air velocities
- Weather-resistant, UV-robust PVC
- Temperature range -30 to +60 degrees C (air velocity up to 12 m/s)
- Available in 10 sizes, mounting set included
Suitable for
- Backdraught protection on wall-mounted exhaust outlets
- Preventing draughts and weather ingress when the fan is off
Installation
Mounts vertically on the wall using the included wall plugs and screws. Keep air velocity below 12 m/s.
Specifications
| Brand | Systemair |
| Type | Gravity louvre shutter (backdraught) |
| Sizes | VK10 to VK50 (10 sizes) |
| Operation | Automatic gravity open and close |
| Material | Weather-resistant PVC (UV-robust) |
| Temperature range | -30 to +60°C |
| Max air velocity | 12 m/s |
| Colour | Light grey RAL 7035 (VK10 white RAL 9010) |
| Mounting | Vertical wall (mounting set included) |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair VK Louvre Shutter Datasheet
Product Description
The Systemair VK Gravity Louvre Shutter is a square, wall-mounted backdraught shutter for exhaust air. Its profiled vanes create a strong upward force that lowers air resistance, so they open fully even at low air velocities and close automatically when the fan stops. It is manufactured from weather-resistant, UV-robust PVC.
- Square louvre shutter for vertical wall mounting
- For exhaust air, with automatic open and close of the vanes
- Profiled vanes open fully even at low air velocities
- Weather-resistant, UV-robust PVC
- Temperature range -30 to +60 degrees C (air velocity up to 12 m/s)
- Available in 10 sizes, mounting set included
Suitable for
- Backdraught protection on wall-mounted exhaust outlets
- Preventing draughts and weather ingress when the fan is off
Installation
Mounts vertically on the wall using the included wall plugs and screws. Keep air velocity below 12 m/s.
Specifications
| Brand | Systemair |
| Type | Gravity louvre shutter (backdraught) |
| Sizes | VK10 to VK50 (10 sizes) |
| Operation | Automatic gravity open and close |
| Material | Weather-resistant PVC (UV-robust) |
| Temperature range | -30 to +60°C |
| Max air velocity | 12 m/s |
| Colour | Light grey RAL 7035 (VK10 white RAL 9010) |
| Mounting | Vertical wall (mounting set included) |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair VK Louvre Shutter Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the VK Gravity Louvre Shutter for?
A wall-mounted backdraught shutter on exhaust air, which opens when the fan runs and closes automatically to stop draughts and weather ingress when it stops.
How does it work?
Profiled vanes create an upward force that opens them fully even at low air velocities; they close by gravity when airflow stops.
What is it made from?
Weather-resistant, UV-robust PVC that will not deform or come loose.
What conditions does it withstand?
Temperatures from -30 to +60 degrees C and air velocities up to 12 m/s.
What colour is it?
Light grey RAL 7035, except VK10 which is white RAL 9010.
Is fixing hardware included?
Yes, wall plugs and screws are included in the mounting set.
