Product Details
Downloads
Specifications
Product specifications
| Brand | Vent-Axia |
| Model | HR500X (14101070) |
| Type | Through-wall heat recovery unit |
| Heat recovery | Up to 70% |
| Airflow | 153 l/s heat recovery / 250 l/s extract |
| Shutters | Integral shutters |
| Dimensions (HxW) | 375 x 605mm |
| Mounting | Wall |
| Max operating temperature | 40°C |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

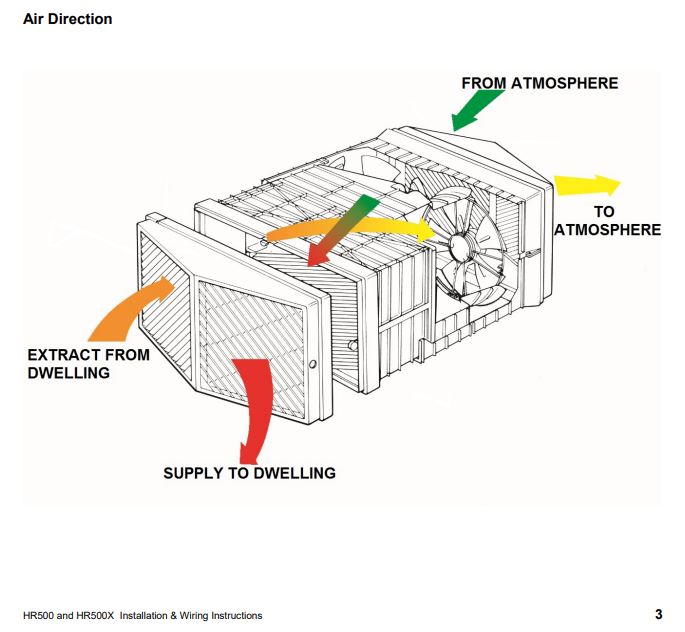

The Vent-Axia HR500X is a through-the-wall heat recovery ventilation unit with integral shutters that exhausts stale air while supplying warmed fresh air, moving a useful 153 l/s. The supply fan can be reversed to give 'double extraction' when heat loss is wanted.
It suits commercial areas needing a high-performance balanced intake and extract scheme, such as swimming pools, computer rooms, classrooms and offices. It delivers up to 70% heat recovery, is speed controllable, and one controller can operate up to two HR500 or HR500X units.
- Up to 70% heat recovery
- Through-wall MVHR
- 153 l/s, integral shutters
Specifications
| Brand | Vent-Axia |
| Model | HR500X (14101070) |
| Type | Through-wall heat recovery unit |
| Heat recovery | Up to 70% |
| Airflow | 153 l/s heat recovery / 250 l/s extract |
| Shutters | Integral shutters |
| Dimensions (HxW) | 375 x 605mm |
| Mounting | Wall |
| Max operating temperature | 40°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Product Description
The Vent-Axia HR500X is a through-the-wall heat recovery ventilation unit with integral shutters that exhausts stale air while supplying warmed fresh air, moving a useful 153 l/s. The supply fan can be reversed to give 'double extraction' when heat loss is wanted.
It suits commercial areas needing a high-performance balanced intake and extract scheme, such as swimming pools, computer rooms, classrooms and offices. It delivers up to 70% heat recovery, is speed controllable, and one controller can operate up to two HR500 or HR500X units.
- Up to 70% heat recovery
- Through-wall MVHR
- 153 l/s, integral shutters
Specifications
| Brand | Vent-Axia |
| Model | HR500X (14101070) |
| Type | Through-wall heat recovery unit |
| Heat recovery | Up to 70% |
| Airflow | 153 l/s heat recovery / 250 l/s extract |
| Shutters | Integral shutters |
| Dimensions (HxW) | 375 x 605mm |
| Mounting | Wall |
| Max operating temperature | 40°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Where is it used?
Commercial and leisure areas such as pools, computer rooms, classrooms and offices.
What heat recovery does it give?
Up to 70%.
How is it different from the HR500?
The HR500X has integral shutters.
What airflow does it move?
153 l/s in heat recovery mode, or 250 l/s as an extract fan.
What is 'double extraction'?
The supply fan reverses to extract when heat loss is wanted.
How many units per controller?
One controller operates up to two HR500 or HR500X units.
