Vent-Axia HR500 Heat Recovery Ventilation Unit 14101010B
Vent-Axia HR500 Heat Recovery Ventilation Unit 14101010B
£1,725.99
SKU: 14101010B

Vent-Axia HR500 Heat Recovery Ventilation Unit 14101010B

Up to 70% heat recovery
Through-wall MVHR
153 l/s, reversible
Estimated delivery
7 in stock
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Vent-Axia
Model HR500 (14101010B)
Type Through-wall heat recovery unit
Heat recovery Up to 70%
Airflow 153 l/s heat recovery / 250 l/s extract
Dimensions (HxW) 375 x 605mm
Colour White
Mounting Wall
Max operating temperature 40°C
Warranty 1 Year Manufacturer

Summary

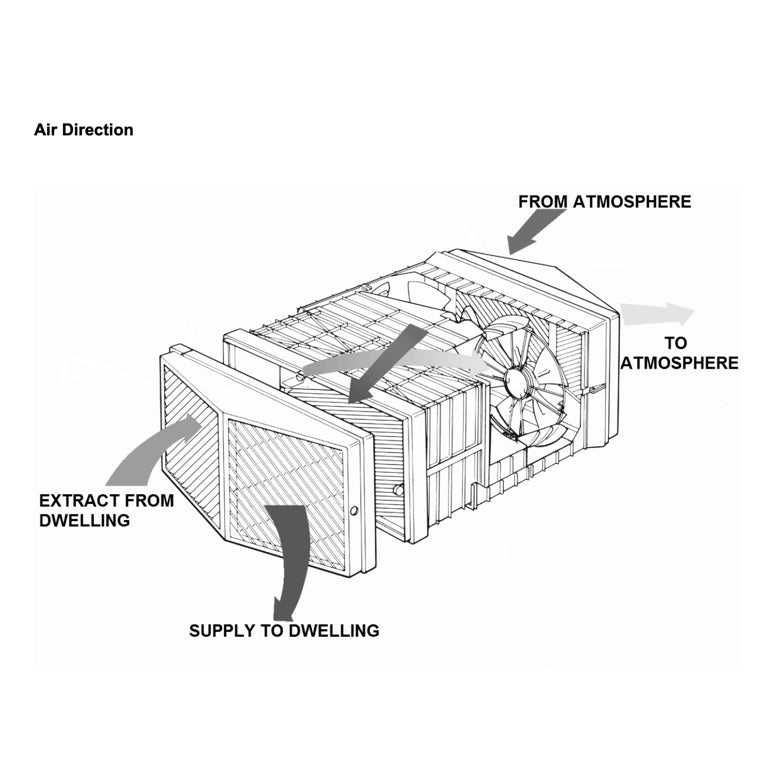

The Vent-Axia HR500 is a through-the-wall heat recovery ventilation unit that exhausts stale air while supplying warmed fresh air, moving a useful 153 l/s. The supply fan can be reversed to give 'double extraction' when heat loss is wanted.

It suits commercial areas needing a high-performance balanced intake and extract scheme, such as swimming pools, computer rooms, classrooms and offices. It delivers up to 70% heat recovery, is speed controllable, and one controller can operate up to two HR500 or HR500X units.

See more specification See less specification

The Vent-Axia HR500 is a through-the-wall heat recovery ventilation unit that exhausts stale air while supplying warmed fresh air, moving a useful 153 l/s. The supply fan can be reversed to give 'double extraction' when heat loss is wanted.

It suits commercial areas needing a high-performance balanced intake and extract scheme, such as swimming pools, computer rooms, classrooms and offices. It delivers up to 70% heat recovery, is speed controllable, and one controller can operate up to two HR500 or HR500X units.

  • Up to 70% heat recovery
  • Through-wall MVHR
  • 153 l/s, reversible

Specifications

Brand Vent-Axia
Model HR500 (14101010B)
Type Through-wall heat recovery unit
Heat recovery Up to 70%
Airflow 153 l/s heat recovery / 250 l/s extract
Dimensions (HxW) 375 x 605mm
Colour White
Mounting Wall
Max operating temperature 40°C
Warranty 1 Year Manufacturer

Manuals & Guides

Vent-Axia HR500 Heat Recovery Unit Datasheet

Product Description

The Vent-Axia HR500 is a through-the-wall heat recovery ventilation unit that exhausts stale air while supplying warmed fresh air, moving a useful 153 l/s. The supply fan can be reversed to give 'double extraction' when heat loss is wanted.

It suits commercial areas needing a high-performance balanced intake and extract scheme, such as swimming pools, computer rooms, classrooms and offices. It delivers up to 70% heat recovery, is speed controllable, and one controller can operate up to two HR500 or HR500X units.

  • Up to 70% heat recovery
  • Through-wall MVHR
  • 153 l/s, reversible

Specifications

Brand Vent-Axia
Model HR500 (14101010B)
Type Through-wall heat recovery unit
Heat recovery Up to 70%
Airflow 153 l/s heat recovery / 250 l/s extract
Dimensions (HxW) 375 x 605mm
Colour White
Mounting Wall
Max operating temperature 40°C
Warranty 1 Year Manufacturer

Manuals & Guides

Vent-Axia HR500 Heat Recovery Unit Datasheet

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Where is it used?

Commercial and leisure areas such as pools, computer rooms, classrooms and offices.

What heat recovery does it give?

Up to 70%.

What airflow does it move?

153 l/s in heat recovery mode, or 250 l/s as an extract fan.

What is 'double extraction'?

The supply fan reverses to extract when heat loss is wanted.

How many units per controller?

One controller operates up to two HR500 or HR500X units.

What wall thickness does it suit?

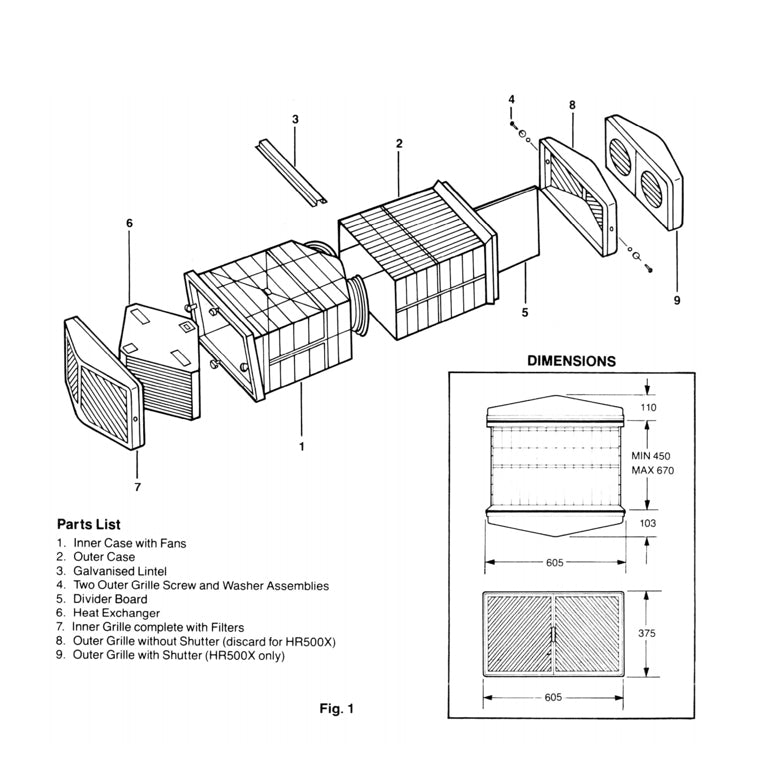

450mm to 670mm using the integral wall liner.
