Product Details
Downloads
Specifications
Product specifications
| Brand | Vent-Axia |
| Model | Heat Save (496036) |
| Type | Decentralised through-wall heat recovery unit |
| Heat recovery | 84% |
| Airflow | Supply / extract 2.8 to 12.0 l/s |
| Power consumption | 1 to 3W |
| Noise | 18 to 36 dB(A) |
| Wall opening | 167 to 180mm dia |
| Operating temperature | -20°C to 50°C |
| Warranty | 5 Years |
Summary
See more specification See less specification

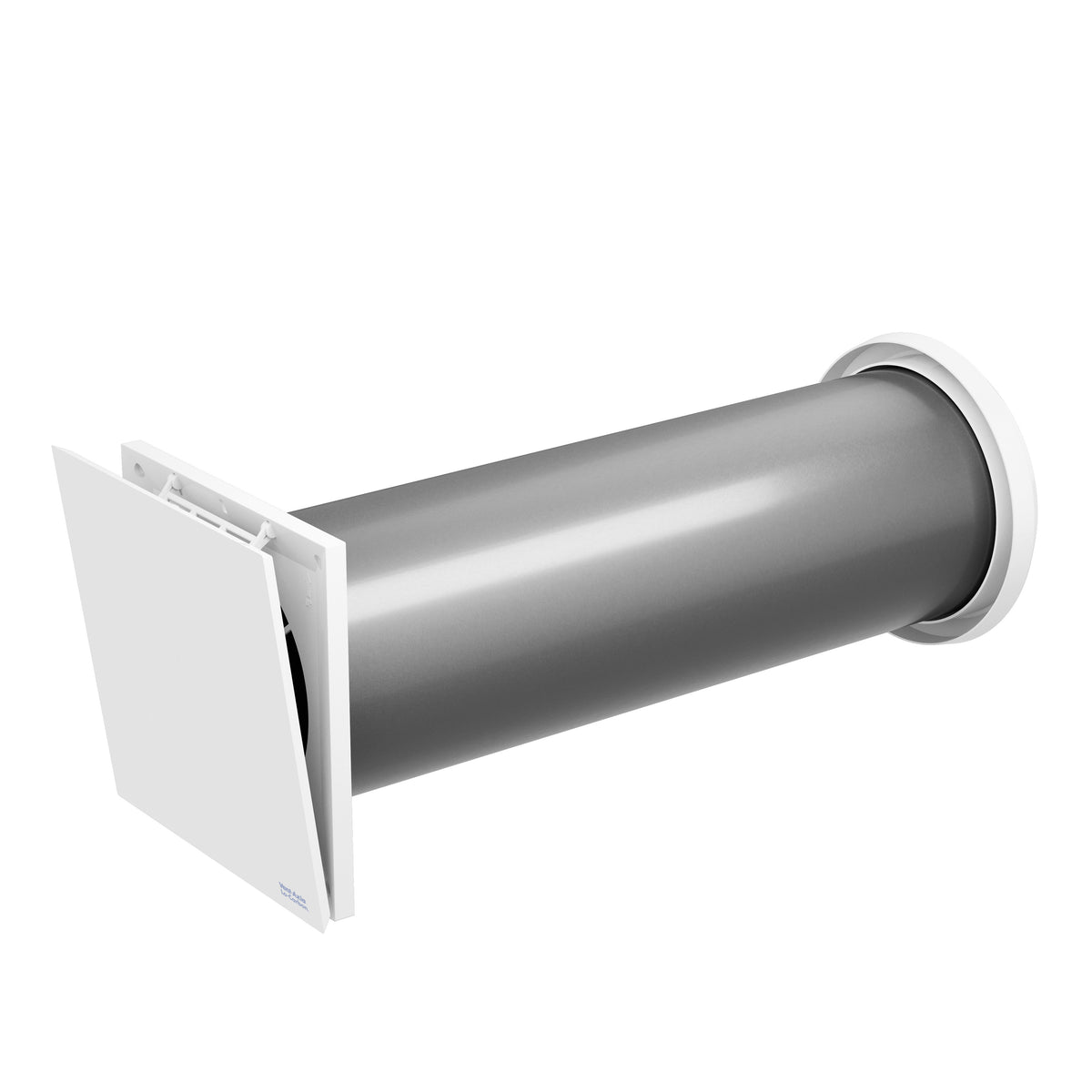

The Vent-Axia Lo-Carbon Heat Save is a decentralised through-the-wall heat recovery unit for living rooms and bedrooms. It uses a reversible fan and ceramic heat exchanger to deliver up to 84% heat recovery, alternating direction every 70 seconds.
The units work best in pairs, one supplying while the other extracts, controlled by a SENWZP Sentinel wired zone controller that runs up to 8 units. It fits a 180mm hole, needs no ducting (wall sleeve included), has anti-frost protection and a 5 year warranty.
- Up to 84% heat recovery
- Through-wall MVHR
- Works in pairs, ceramic core
Specifications
| Brand | Vent-Axia |
| Model | Heat Save (496036) |
| Type | Decentralised through-wall heat recovery unit |
| Heat recovery | 84% |
| Airflow | Supply / extract 2.8 to 12.0 l/s |
| Power consumption | 1 to 3W |
| Noise | 18 to 36 dB(A) |
| Wall opening | 167 to 180mm dia |
| Operating temperature | -20°C to 50°C |
| Warranty | 5 Years |
Manuals & Guides
Product Description
The Vent-Axia Lo-Carbon Heat Save is a decentralised through-the-wall heat recovery unit for living rooms and bedrooms. It uses a reversible fan and ceramic heat exchanger to deliver up to 84% heat recovery, alternating direction every 70 seconds.
The units work best in pairs, one supplying while the other extracts, controlled by a SENWZP Sentinel wired zone controller that runs up to 8 units. It fits a 180mm hole, needs no ducting (wall sleeve included), has anti-frost protection and a 5 year warranty.
- Up to 84% heat recovery
- Through-wall MVHR
- Works in pairs, ceramic core
Specifications
| Brand | Vent-Axia |
| Model | Heat Save (496036) |
| Type | Decentralised through-wall heat recovery unit |
| Heat recovery | 84% |
| Airflow | Supply / extract 2.8 to 12.0 l/s |
| Power consumption | 1 to 3W |
| Noise | 18 to 36 dB(A) |
| Wall opening | 167 to 180mm dia |
| Operating temperature | -20°C to 50°C |
| Warranty | 5 Years |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What heat recovery does it give?
Up to 84%.
How does it work?

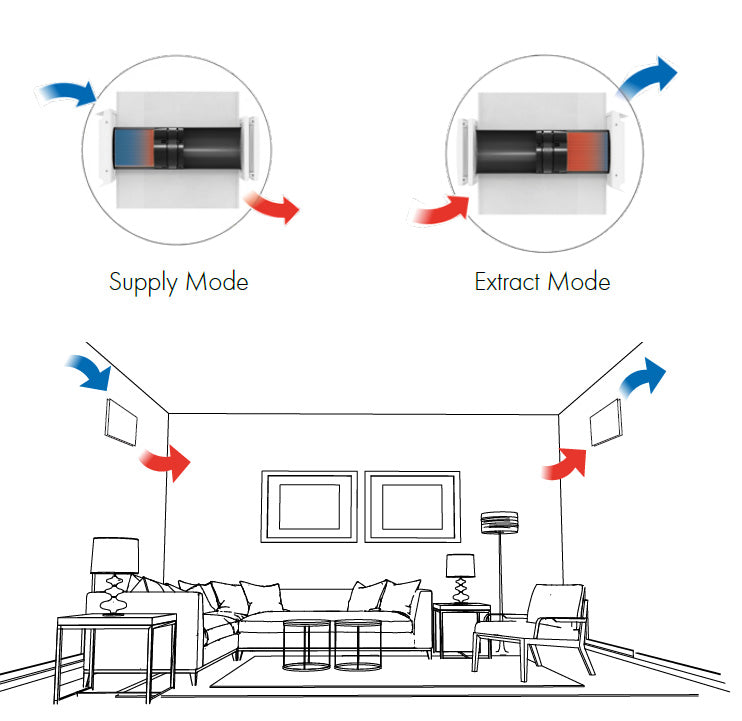

A reversible fan and ceramic core alternate direction every 70 seconds to recover heat.
Do I need two units?
They work best in pairs, one supplying while the other extracts.
How are they controlled?
By a SENWZP Sentinel wired zone controller, which runs up to 8 units.
Is ducting required?
No, a wall sleeve is included and it fits a 180mm hole.
What is the warranty?
5 years.
