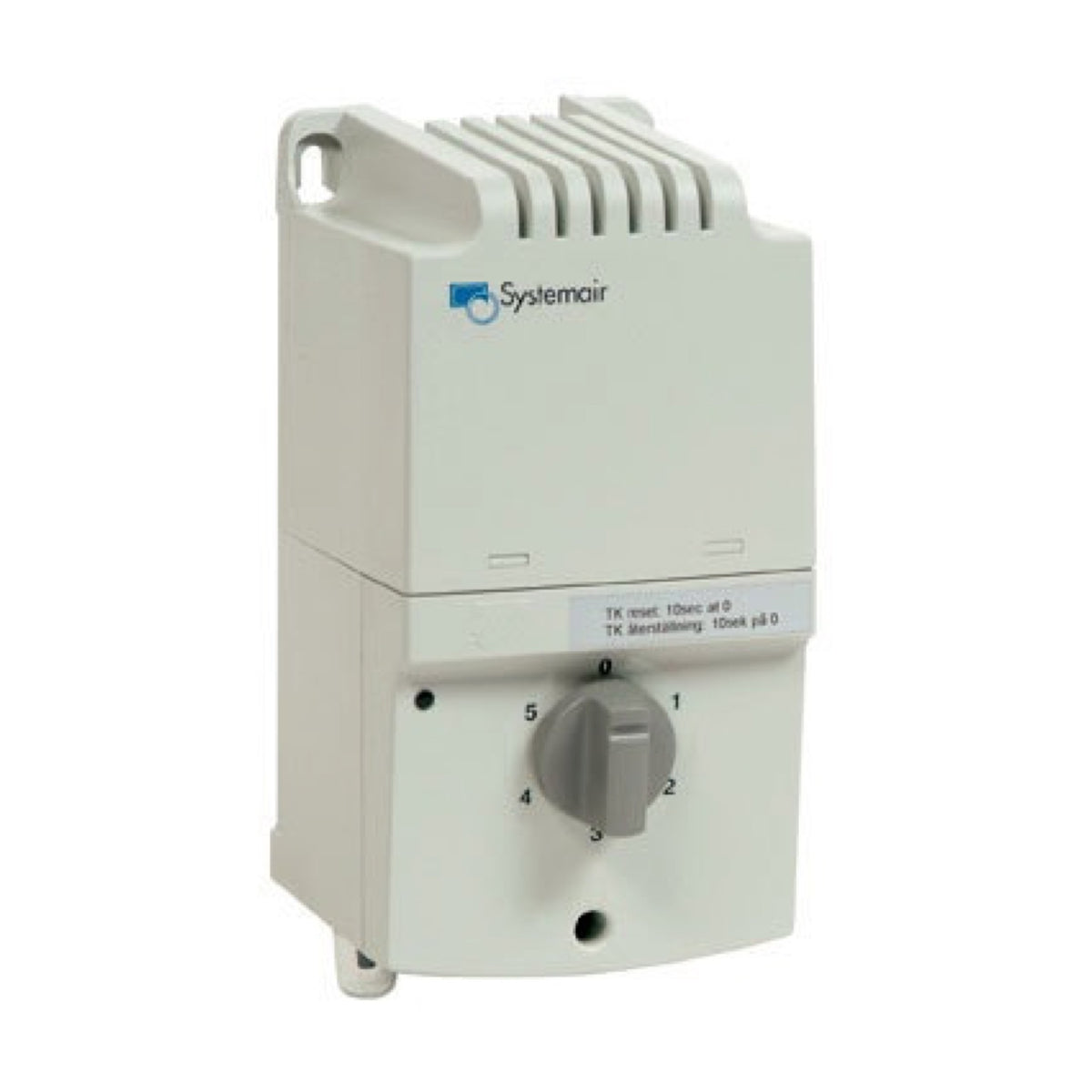

Systemair RTRE 5 Speed Controller 5 Amp 5010
Systemair RTRE 5 Speed Controller 5 Amp 5010
£362.59
SKU: 5010

Systemair RTRE 5 Speed Controller 5 Amp 5010

5 Amp
5-step transformer controller
Single phase
Estimated delivery
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Systemair
Model RTRE 5 (5010)
Type Transformer controller (5-step)
Rated Current 5 Amp
Phase Single phase
Voltage 230V 50/60Hz
Motor Protection Integral
Enclosure IP54
Dimensions 105x203x106mm
Warranty 1 Year Manufacturer

Summary

The Systemair RTRE 5 is a five-step transformer speed controller rated at 5 Amp for single phase Systemair fans, fitted with integral motor protection. It controls fan speed in five fixed steps using a manual rotary switch for reliable regulation of AC voltage-controllable fans.

The controller offers five fixed speed steps, integral motor protection that cuts the supply if the fan thermal contact activates, an RT room thermostat input and 230V terminals for auxiliary connections, all housed in a self-extinguishing IP54 casing.

See more specification See less specification

The Systemair RTRE 5 is a five-step transformer speed controller rated at 5 Amp for single phase Systemair fans, fitted with integral motor protection. It controls fan speed in five fixed steps using a manual rotary switch for reliable regulation of AC voltage-controllable fans.

The controller offers five fixed speed steps, integral motor protection that cuts the supply if the fan thermal contact activates, an RT room thermostat input and 230V terminals for auxiliary connections, all housed in a self-extinguishing IP54 casing.

  • 5 Amp
  • 5-step transformer controller
  • Single phase

Suitable for

  • Single phase AC voltage-controllable Systemair fans up to 5 Amp
  • Fans with thermal contacts requiring integral motor protection

Specifications

Brand Systemair
Model RTRE 5 (5010)
Type Transformer controller (5-step)
Rated Current 5 Amp
Phase Single phase
Voltage 230V 50/60Hz
Motor Protection Integral
Enclosure IP54
Dimensions 105x203x106mm
Warranty 1 Year Manufacturer

Manuals & Guides

Systemair RTRE 5 Data Sheet

Product Description

The Systemair RTRE 5 is a five-step transformer speed controller rated at 5 Amp for single phase Systemair fans, fitted with integral motor protection. It controls fan speed in five fixed steps using a manual rotary switch for reliable regulation of AC voltage-controllable fans.

The controller offers five fixed speed steps, integral motor protection that cuts the supply if the fan thermal contact activates, an RT room thermostat input and 230V terminals for auxiliary connections, all housed in a self-extinguishing IP54 casing.

  • 5 Amp
  • 5-step transformer controller
  • Single phase

Suitable for

  • Single phase AC voltage-controllable Systemair fans up to 5 Amp
  • Fans with thermal contacts requiring integral motor protection

Specifications

Brand Systemair
Model RTRE 5 (5010)
Type Transformer controller (5-step)
Rated Current 5 Amp
Phase Single phase
Voltage 230V 50/60Hz
Motor Protection Integral
Enclosure IP54
Dimensions 105x203x106mm
Warranty 1 Year Manufacturer

Manuals & Guides

Systemair RTRE 5 Data Sheet

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What does the Systemair RTRE 5 do?

It manually controls the speed of a single phase Systemair fan in five fixed steps and includes integral motor protection.

What current rating is the RTRE 5?

It is rated at 5 Amp and suits single phase fans drawing up to that current.

Is the RTRE 5 single or three phase?

It is a single phase controller operating on 230V 50/60Hz.

What is integral motor protection?

It cuts the supply to the fan if the fan thermal contact activates, protecting the motor from overheating.

Does it have a thermostat input?

Yes, it has an RT room thermostat input plus 230V terminals for auxiliary connections.

How many speed steps does it offer?

It offers five fixed speed steps controlled by a manual rotary switch.
