Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | RTRE 3 (5009) |
| Type | Transformer controller (5-step) |
| Rated Current | 3 Amp |
| Phase | Single phase |
| Voltage | 230V 50/60Hz |
| Motor Protection | Integral |
| Enclosure | IP54 |
| Dimensions | 105x203x106mm |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

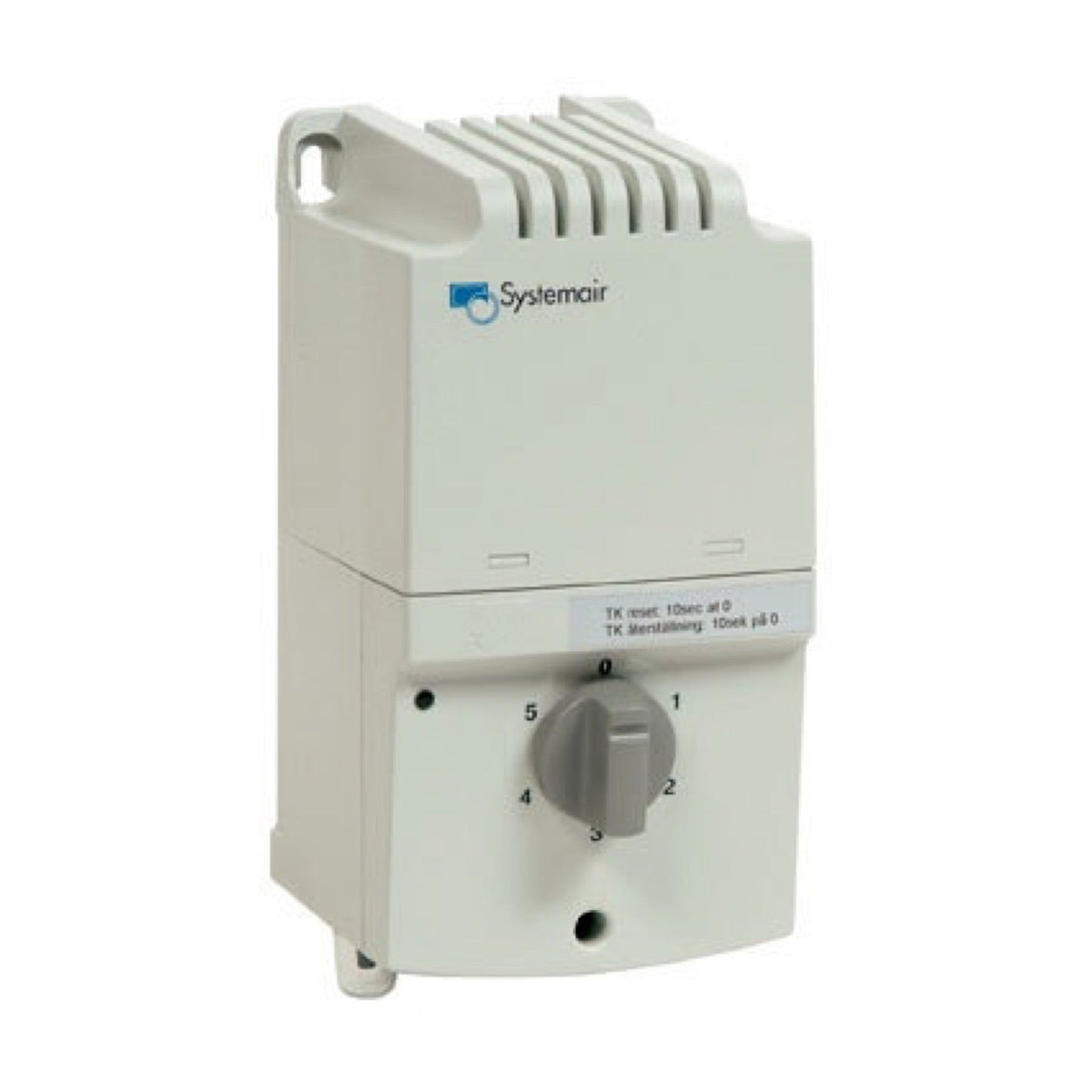

The Systemair RTRE 3 is a five-step transformer speed controller rated at 3 Amp for single phase Systemair fans, fitted with integral motor protection. It controls fan speed in five fixed steps using a manual rotary switch for reliable regulation of AC voltage-controllable fans.
The controller offers five fixed speed steps, integral motor protection that cuts the supply if the fan thermal contact activates, an RT room thermostat input and 230V terminals for auxiliary connections, all housed in a self-extinguishing IP54 casing.
- 3 Amp
- 5-step transformer controller
- Single phase
Suitable for
- Single phase AC voltage-controllable Systemair fans up to 3 Amp
- Fans with thermal contacts requiring integral motor protection
Specifications
| Brand | Systemair |
| Model | RTRE 3 (5009) |
| Type | Transformer controller (5-step) |
| Rated Current | 3 Amp |
| Phase | Single phase |
| Voltage | 230V 50/60Hz |
| Motor Protection | Integral |
| Enclosure | IP54 |
| Dimensions | 105x203x106mm |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Product Description
The Systemair RTRE 3 is a five-step transformer speed controller rated at 3 Amp for single phase Systemair fans, fitted with integral motor protection. It controls fan speed in five fixed steps using a manual rotary switch for reliable regulation of AC voltage-controllable fans.
The controller offers five fixed speed steps, integral motor protection that cuts the supply if the fan thermal contact activates, an RT room thermostat input and 230V terminals for auxiliary connections, all housed in a self-extinguishing IP54 casing.
- 3 Amp
- 5-step transformer controller
- Single phase
Suitable for
- Single phase AC voltage-controllable Systemair fans up to 3 Amp
- Fans with thermal contacts requiring integral motor protection
Specifications
| Brand | Systemair |
| Model | RTRE 3 (5009) |
| Type | Transformer controller (5-step) |
| Rated Current | 3 Amp |
| Phase | Single phase |
| Voltage | 230V 50/60Hz |
| Motor Protection | Integral |
| Enclosure | IP54 |
| Dimensions | 105x203x106mm |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What does the Systemair RTRE 3 do?
It manually controls the speed of a single phase Systemair fan in five fixed steps and includes integral motor protection.
What current rating is the RTRE 3?
It is rated at 3 Amp and suits single phase fans drawing up to that current.
Is the RTRE 3 single or three phase?
It is a single phase controller operating on 230V 50/60Hz.
What is integral motor protection?
It cuts the supply to the fan if the fan thermal contact activates, protecting the motor from overheating.
Does it have a thermostat input?
Yes, it has an RT room thermostat input plus 230V terminals for auxiliary connections.
How many speed steps does it offer?
It offers five fixed speed steps controlled by a manual rotary switch.
