Systemair MTP10 10K Speed Controller for EC Fans
Systemair MTP10 10K Speed Controller for EC Fans
£90.73
SKU: 32731

Systemair MTP10 10K Speed Controller for EC Fans

0-10V
Potentiometer speed controller
For EC fans
Estimated delivery
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Systemair
Model MTP10
Type Potentiometer speed controller
For EC fans
Voltage 10V DC
Switching Capacity 4A / 250V
Enclosure Class IP54 surface / IP44 flush
Colour White
Warranty 1 Year Manufacturer

Summary

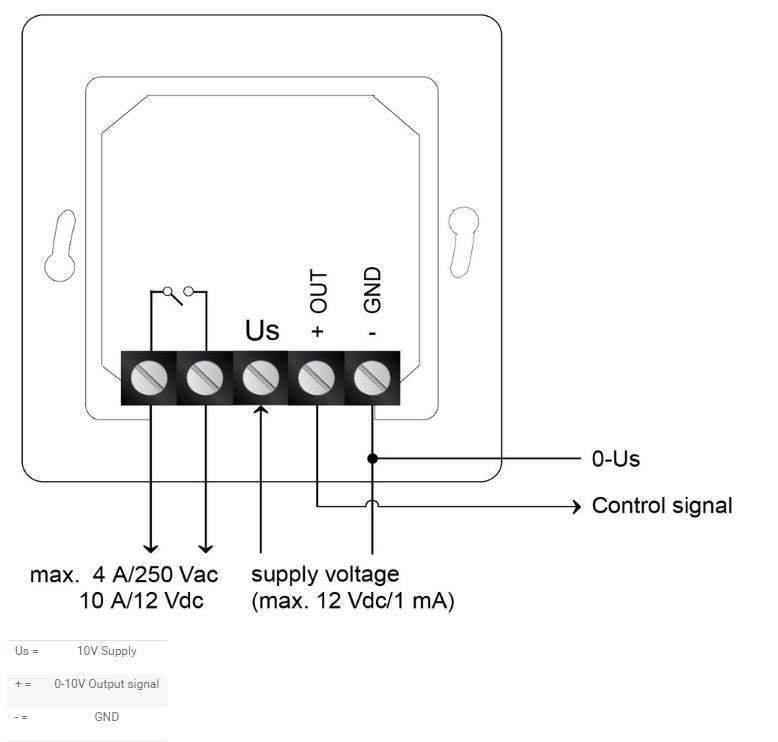

The Systemair MTP10 10K Speed Controller is a 10k-ohm potentiometer for manual speed control of EC fans with a 0-10V output. It operates at 10V DC and has a switching capacity of 4A at 250V.

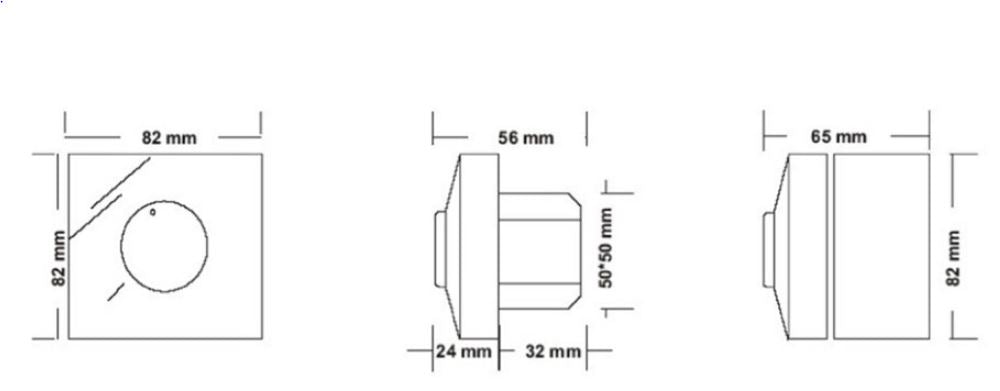

Supplied with a surface mounting case rated IP54 (IP44 when flush mounted), it lets an operator set fan speed manually from a white fascia.

See more specification See less specification

The Systemair MTP10 10K Speed Controller is a 10k-ohm potentiometer for manual speed control of EC fans with a 0-10V output. It operates at 10V DC and has a switching capacity of 4A at 250V.

Supplied with a surface mounting case rated IP54 (IP44 when flush mounted), it lets an operator set fan speed manually from a white fascia.

  • 10k-ohm potentiometer with 0-10V output
  • Switching capacity 4A / 250V
  • IP54 surface, IP44 flush enclosure

Suitable for

  • Manual speed control of EC fans
  • Surface or flush mounting

Specifications

Brand Systemair
Model MTP10
Type Potentiometer speed controller
For EC fans
Voltage 10V DC
Switching Capacity 4A / 250V
Enclosure Class IP54 surface / IP44 flush
Colour White
Warranty 1 Year Manufacturer

Manuals & Guides

Systemair MTP10 10K Speed Controller Data Sheet

Product Description

The Systemair MTP10 10K Speed Controller is a 10k-ohm potentiometer for manual speed control of EC fans with a 0-10V output. It operates at 10V DC and has a switching capacity of 4A at 250V.

Supplied with a surface mounting case rated IP54 (IP44 when flush mounted), it lets an operator set fan speed manually from a white fascia.

  • 10k-ohm potentiometer with 0-10V output
  • Switching capacity 4A / 250V
  • IP54 surface, IP44 flush enclosure

Suitable for

  • Manual speed control of EC fans
  • Surface or flush mounting

Specifications

Brand Systemair
Model MTP10
Type Potentiometer speed controller
For EC fans
Voltage 10V DC
Switching Capacity 4A / 250V
Enclosure Class IP54 surface / IP44 flush
Colour White
Warranty 1 Year Manufacturer

Manuals & Guides

Systemair MTP10 10K Speed Controller Data Sheet

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What is the MTP10?

It is a 10k-ohm potentiometer for manual speed control of EC fans with a 0-10V output.

What fans is it for?

It is designed for EC fans that accept a 0-10V control signal.

What is its switching capacity?

It has a switching capacity of 4A at 250V.

What is the enclosure rating?

It is IP54 when surface mounted and IP44 when flush mounted.

Does it include a mounting case?

Yes, it is supplied with a surface mounting case.

Does it come with a warranty?

Yes, it carries a 1 year manufacturer warranty.
