S&P TCBB/4-630/L Cased Axial Fan Single Phase - 630mm
S&P TCBB/4-630/L Cased Axial Fan Single Phase - 630mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | S and P |
| Model | TCBB/4-630/L |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 15980 m³/h |
| Phase | Single phase |
| Poles | 4 pole |
| Power | 1707 W |
| Voltage | 230V |
| Noise | 70 dB(A) |
Summary
See more specification See less specification

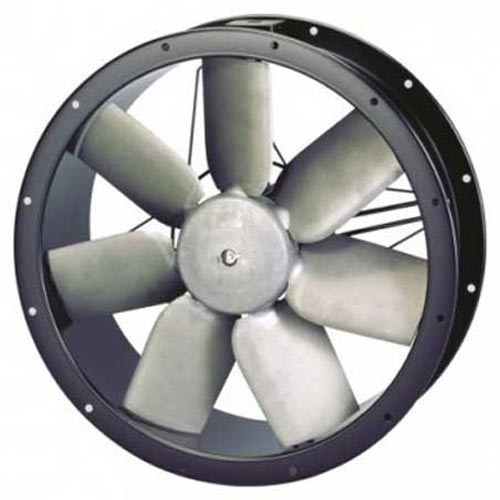

The S and P TCBB/4-630/L is a single phase cased axial fan with a 630mm diameter, delivering airflow up to 15980 m³/h for in-line duct mounting.
Powered by a single phase 4 pole AC external rotor motor rated IP65, it suits commercial and industrial supply and extract ventilation. The cylindrical galvanised steel casing installs easily in restricted spaces and runs at fixed speed.
- 1 Phase
- AC motor
- Up to 15980 m³/h
- Fixed speed
Specifications
| Brand | S and P |
| Model | TCBB/4-630/L |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 15980 m³/h |
| Phase | Single phase |
| Poles | 4 pole |
| Power | 1707 W |
| Voltage | 230V |
| Noise | 70 dB(A) |
| IP rating | IP65 |
Product Description
The S and P TCBB/4-630/L is a single phase cased axial fan with a 630mm diameter, delivering airflow up to 15980 m³/h for in-line duct mounting.
Powered by a single phase 4 pole AC external rotor motor rated IP65, it suits commercial and industrial supply and extract ventilation. The cylindrical galvanised steel casing installs easily in restricted spaces and runs at fixed speed.
- 1 Phase
- AC motor
- Up to 15980 m³/h
- Fixed speed
Specifications
| Brand | S and P |
| Model | TCBB/4-630/L |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 15980 m³/h |
| Phase | Single phase |
| Poles | 4 pole |
| Power | 1707 W |
| Voltage | 230V |
| Noise | 70 dB(A) |
| IP rating | IP65 |
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What airflow does the S and P TCBB/4-630/L deliver?
It delivers up to 15,980 m³/h at 630mm diameter.
Is the TCBB/4-630/L single or three phase?
It is single phase, running on a 230V supply.
Can the TCBB/4-630/L be speed controlled?
No, the /4-630/L variant runs at fixed speed and is not speed controllable.
How noisy is the TCBB/4-630/L?
Sound pressure level is 70 dB(A) measured at three times the impeller diameter.
What IP rating does the TCBB/4-630/L have?
The motor is rated IP65 with Class F insulation and thermal protection.
Where can the TCBB/4-630/L be installed?
It is designed for in-line duct mounting in commercial and industrial ventilation systems.
