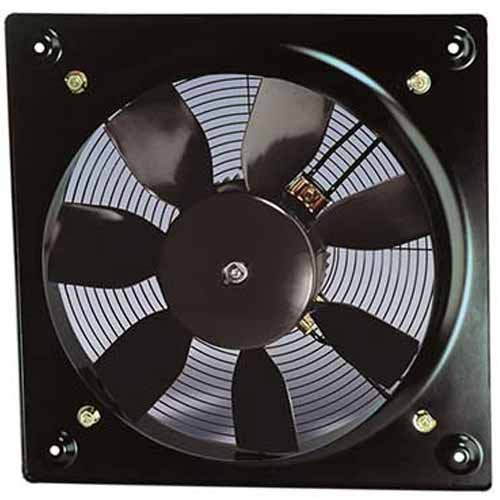

S&P HCBT/4-630 Plate Axial Fan Three Phase - 630mm
S&P HCBT/4-630 Plate Axial Fan Three Phase - 630mm
£949.99
SKU: 5603645200

S&P HCBT/4-630 Plate Axial Fan Three Phase - 630mm

3 Phase
AC Motor
Up to 16840 m³/h
Estimated delivery
In stock
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand S&P
Model HCBT/4-630
Type Plate axial fan
Diameter 630mm
Max airflow 16840 m³/h
Phase 3 Phase
Poles 4 pole
Power 1736W
Voltage 230/400V 50Hz
Noise 73 dB(A)

Summary

The S&P HCBT/4-630 is a 630mm plate axial fan delivering up to 16840 m³/h of airflow.

It runs a three phase 4 pole internal rotor motor rated at 1736W, with IP65 ingress protection, thermal overload protection and speed control by transformer or inverter. Suited to commercial kitchens, plant rooms, warehouses and general HVAC extract and supply duties.

See more specification See less specification

The S&P HCBT/4-630 is a 630mm plate axial fan delivering up to 16840 m³/h of airflow.

It runs a three phase 4 pole internal rotor motor rated at 1736W, with IP65 ingress protection, thermal overload protection and speed control by transformer or inverter. Suited to commercial kitchens, plant rooms, warehouses and general HVAC extract and supply duties.

  • 3 Phase
  • AC motor
  • Up to 16840 m³/h
  • Speed controllable

Specifications

Brand S&P
Model HCBT/4-630
Type Plate axial fan
Diameter 630mm
Max airflow 16840 m³/h
Phase 3 Phase
Poles 4 pole
Power 1736W
Voltage 230/400V 50Hz
Noise 73 dB(A)

Manuals & Guides

S&P HCBT/4-630 Plate Axial Fan Three Phase - 630mm Datasheet

Product Description

The S&P HCBT/4-630 is a 630mm plate axial fan delivering up to 16840 m³/h of airflow.

It runs a three phase 4 pole internal rotor motor rated at 1736W, with IP65 ingress protection, thermal overload protection and speed control by transformer or inverter. Suited to commercial kitchens, plant rooms, warehouses and general HVAC extract and supply duties.

  • 3 Phase
  • AC motor
  • Up to 16840 m³/h
  • Speed controllable

Specifications

Brand S&P
Model HCBT/4-630
Type Plate axial fan
Diameter 630mm
Max airflow 16840 m³/h
Phase 3 Phase
Poles 4 pole
Power 1736W
Voltage 230/400V 50Hz
Noise 73 dB(A)

Manuals & Guides

S&P HCBT/4-630 Plate Axial Fan Three Phase - 630mm Datasheet

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What airflow does the S&P HCBT/4-630 deliver?

It moves up to 16840 m³/h at free delivery.

Is the HCBT/4-630 single or three phase?

It is a three phase fan, wired at 230/400V 50Hz.

Can the fan speed be controlled?

Yes. It accepts transformer speed control or inverter control.

What is the ingress protection rating?

The motor is rated IP65 to Class F insulation with thermal overload protection.

What is the impeller diameter?

The impeller is 630mm.

What is it used for?

It suits commercial kitchens, plant rooms, warehouses and general HVAC extract and supply duties.
