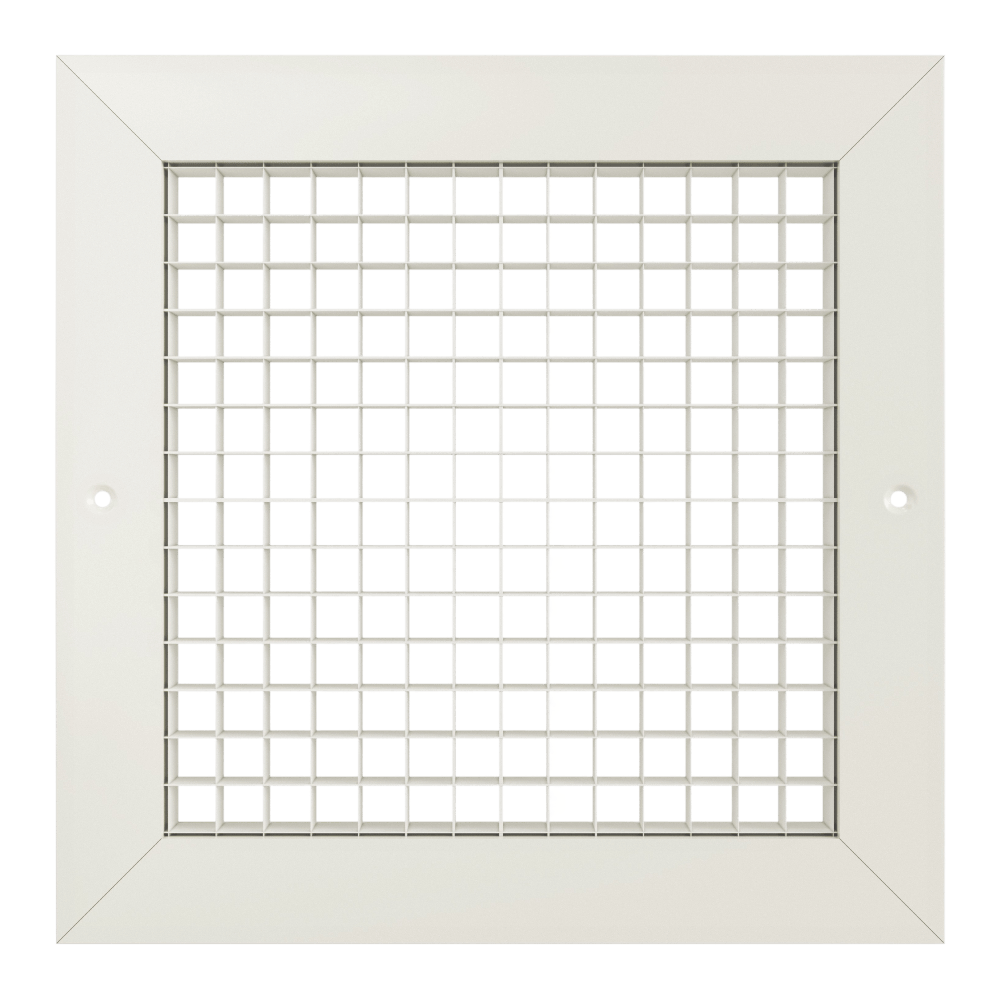

Egg Crate Grille Ceiling or Wall Mounted in White Finish
£32.18

Egg Crate Grille Ceiling or Wall Mounted in White Finish

eFansPRODUCT CODE: 53771
filler

Price:
£32.18

Stock:
In stock

Product Description

The Egg Crate Grille is used for air extraction on ceilings and walls. Its open egg-crate core gives around 90% free area with vanes set parallel to the airflow, and it is manufactured from extruded aluminium with a white paint finish.

  • Open egg-crate core, approximately 90% free area
  • Vanes parallel to the airflow
  • Extruded aluminium, white paint finish
  • Nine neck sizes from 150mm to 550mm
  • Outside flange is 45mm larger than the neck (e.g. 550mm neck = 595mm overall)
  • Available with or without an opposed-blade damper on the back

Suitable for

  • Extract ventilation in commercial and domestic ceilings and walls
  • Applications needing a high free area and low resistance

Installation

Mounts to ceilings or walls over the duct opening. Can be supplied with a damper on the back to control the flow of air.

Specifications

Type Egg crate extract grille
Neck sizes 150 to 550 mm (9 sizes)
Outside flange 45mm larger than neck size
Free area Approx. 90%
Damper Optional opposed-blade damper
Material Extruded aluminium
Finish White paint
Mounting Ceiling or wall
Warranty 1 Year Manufacturer

Manuals & Guides
Egg Crate Grille Dimensions Datasheet
