Product Details
Specifications
Product specifications
| Type | Intumescent air transfer fire block |
| Dimensions (H x W x D) | 600mm x 600mm x 38mm |
| Fire rating (timber doors) | Up to 60 minutes |
| Fire rating (walls and ducts) | Up to 120 minutes |
| Free area | Approx. 60% |
| Mounting | Doors, walls, ducts |
| Finish | Black/grey (other colours on request) |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

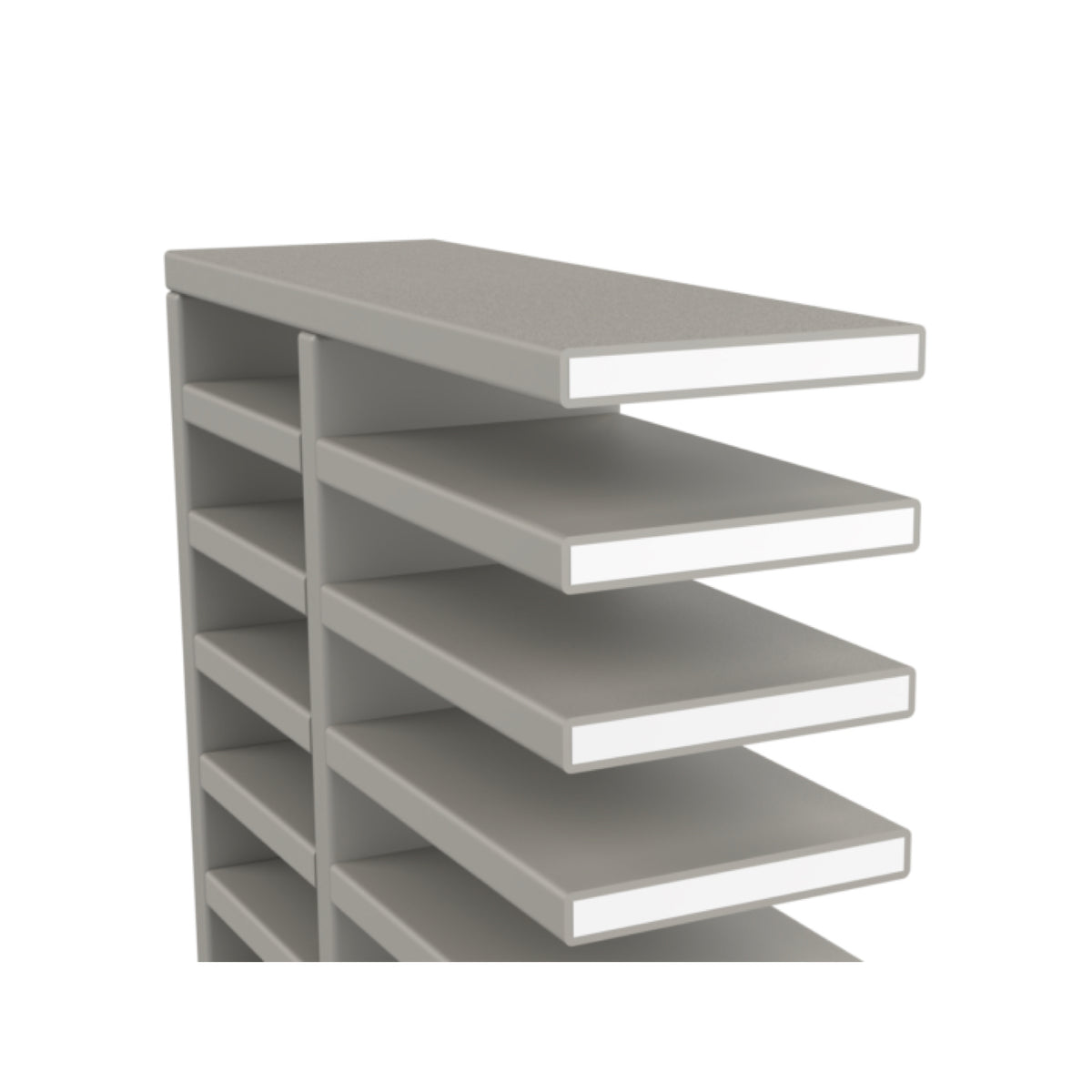

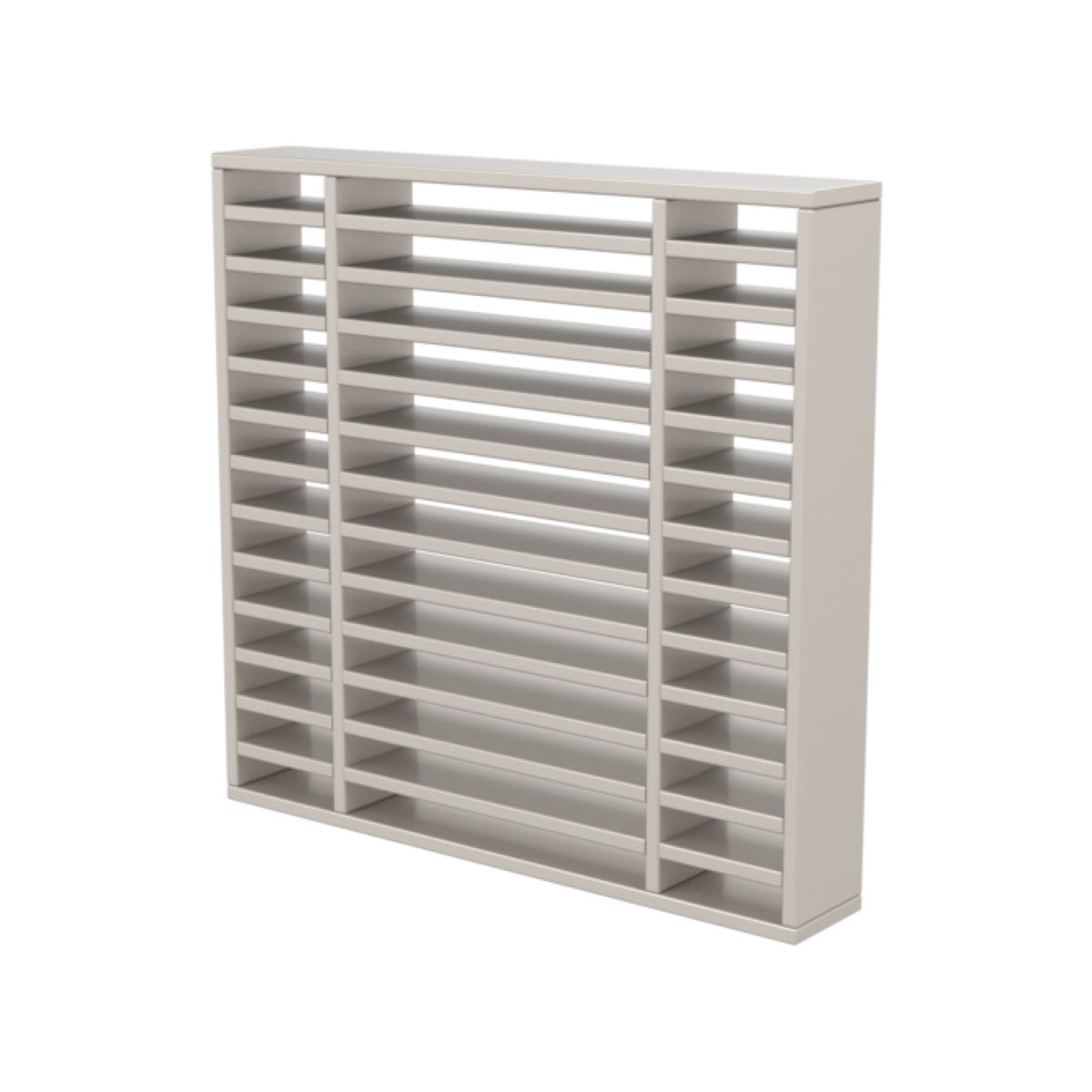

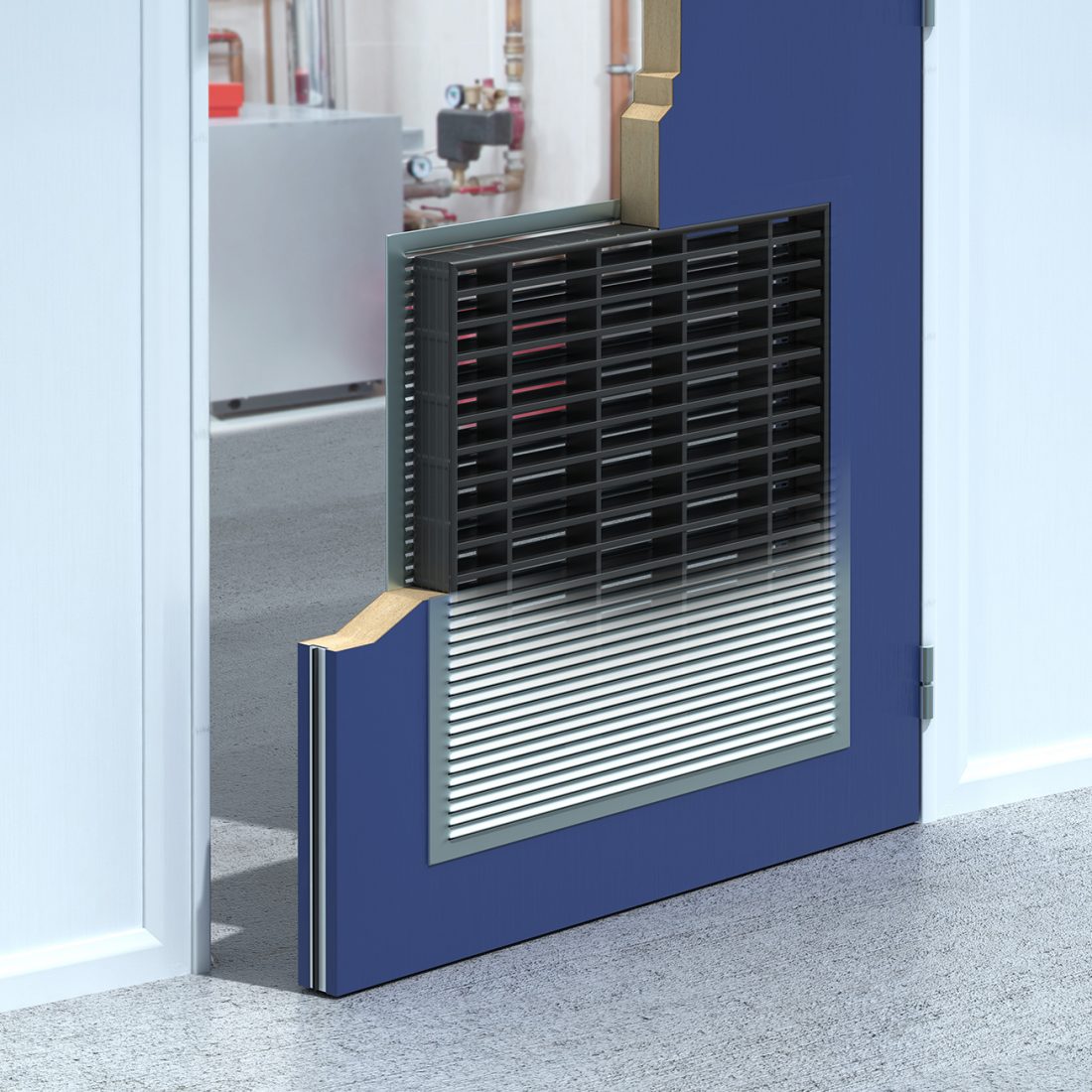

The 600mm Square Intumescent Air Transfer Fire Block is a high-performance air transfer grille for doors, walls and ducts that gives good airflow and quiet operation in normal use, then seals the aperture in a fire. It has no moving parts: the intumescent core expands in heat to form an incombustible mass that blocks the spread of fire and hot smoke.
Slim at 38mm thick with roughly 60% free area, it is tested in timber doors rated up to 60 minutes and in walls and ductwork rated up to 120 minutes. Finished in black/grey, it needs little maintenance beyond an occasional wipe with a damp cloth.
- 600 x 600mm
- Intumescent fire block
- Up to 120 min in walls and ducts
Suitable for
- Vertical and horizontal ducted ventilation systems
- Airflow control and fire protection
Specifications
| Type | Intumescent air transfer fire block |
| Dimensions (H x W x D) | 600mm x 600mm x 38mm |
| Fire rating (timber doors) | Up to 60 minutes |
| Fire rating (walls and ducts) | Up to 120 minutes |
| Free area | Approx. 60% |
| Mounting | Doors, walls, ducts |
| Finish | Black/grey (other colours on request) |
| Warranty | 1 Year Manufacturer |
Product Description
The 600mm Square Intumescent Air Transfer Fire Block is a high-performance air transfer grille for doors, walls and ducts that gives good airflow and quiet operation in normal use, then seals the aperture in a fire. It has no moving parts: the intumescent core expands in heat to form an incombustible mass that blocks the spread of fire and hot smoke.
Slim at 38mm thick with roughly 60% free area, it is tested in timber doors rated up to 60 minutes and in walls and ductwork rated up to 120 minutes. Finished in black/grey, it needs little maintenance beyond an occasional wipe with a damp cloth.
- 600 x 600mm
- Intumescent fire block
- Up to 120 min in walls and ducts
Suitable for
- Vertical and horizontal ducted ventilation systems
- Airflow control and fire protection
Specifications
| Type | Intumescent air transfer fire block |
| Dimensions (H x W x D) | 600mm x 600mm x 38mm |
| Fire rating (timber doors) | Up to 60 minutes |
| Fire rating (walls and ducts) | Up to 120 minutes |
| Free area | Approx. 60% |
| Mounting | Doors, walls, ducts |
| Finish | Black/grey (other colours on request) |
| Warranty | 1 Year Manufacturer |
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What size is it?
600mm x 600mm x 38mm.
What fire rating does it give?
Up to 60 minutes in timber doors and up to 120 minutes in walls and ductwork.
How does it work?
The intumescent core expands in heat to seal the aperture; there are no moving parts.
What is the free area?
Approximately 60%.
Where can it be fitted?
Timber fire doors, partition walls and ducts.
Should it be used in humid areas?
No, it should not be used in areas of high or constant humidity.
