Product Details
Downloads
Specifications
Product specifications
| Type | Intumescent fire block |
| Diameter | 100mm |
| Depth | 38mm |
| Fire rating (timber doors) | Up to 60 minutes |
| Fire rating (walls and ducts) | Up to 120 minutes |
| Free area | Approx. 60% |
| Mounting | Doors, walls, ducts (fits spiral duct) |
| Finish | Black/grey (other colours on request) |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

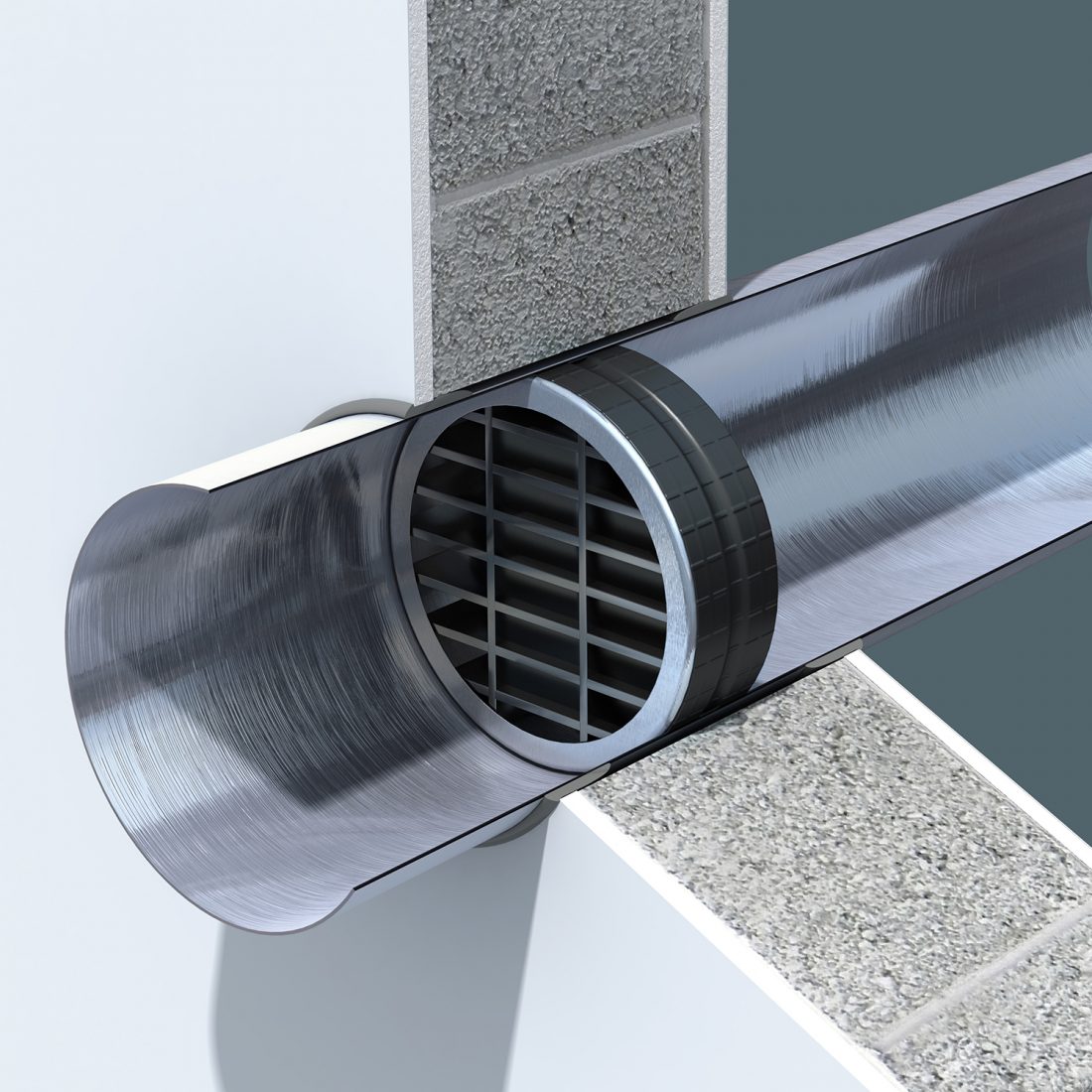

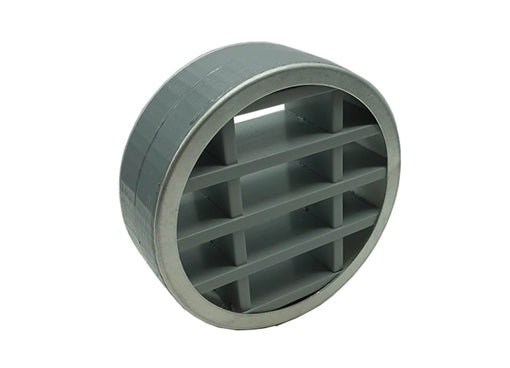

The 100mm Circular Intumescent Fire Block fits 100mm diameter spiral ducting and seals the duct in a fire while allowing air transfer in normal use. It has no moving parts: the intumescent core expands in heat to form an incombustible mass that blocks the spread of fire and hot smoke.
Slim at 38mm thick with roughly 60% free area, it is tested in timber doors rated up to 60 minutes and in walls and ductwork rated up to 120 minutes. Finished in black/grey, it needs little maintenance beyond an occasional wipe with a damp cloth.
- 100mm diameter
- Intumescent fire block
- Up to 120 min in walls and ducts
Suitable for
- Vertical and horizontal ducted ventilation systems
- Airflow control and fire protection
Specifications
| Type | Intumescent fire block |
| Diameter | 100mm |
| Depth | 38mm |
| Fire rating (timber doors) | Up to 60 minutes |
| Fire rating (walls and ducts) | Up to 120 minutes |
| Free area | Approx. 60% |
| Mounting | Doors, walls, ducts (fits spiral duct) |
| Finish | Black/grey (other colours on request) |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Product Description
The 100mm Circular Intumescent Fire Block fits 100mm diameter spiral ducting and seals the duct in a fire while allowing air transfer in normal use. It has no moving parts: the intumescent core expands in heat to form an incombustible mass that blocks the spread of fire and hot smoke.
Slim at 38mm thick with roughly 60% free area, it is tested in timber doors rated up to 60 minutes and in walls and ductwork rated up to 120 minutes. Finished in black/grey, it needs little maintenance beyond an occasional wipe with a damp cloth.
- 100mm diameter
- Intumescent fire block
- Up to 120 min in walls and ducts
Suitable for
- Vertical and horizontal ducted ventilation systems
- Airflow control and fire protection
Specifications
| Type | Intumescent fire block |
| Diameter | 100mm |
| Depth | 38mm |
| Fire rating (timber doors) | Up to 60 minutes |
| Fire rating (walls and ducts) | Up to 120 minutes |
| Free area | Approx. 60% |
| Mounting | Doors, walls, ducts (fits spiral duct) |
| Finish | Black/grey (other colours on request) |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What size is it?
100mm diameter, to fit 100mm spiral duct.
What fire rating does it give?
Up to 60 minutes in timber doors and up to 120 minutes in walls and ductwork.
How does it work?
The intumescent core expands in heat to seal the duct; there are no moving parts.
What is the free area?
Approximately 60%.
How is it installed?
Screw through the duct wall into the frames and seal the perimeter with intumescent sealant on both sides.
Should it be used in humid areas?
No, it should not be used in areas of high or constant humidity.
