Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | KBT 160E4 Thermo |
| Type | Kitchen centrifugal box fan |
| Duct diameter | 160mm |
| Max airflow | 831 m³/h |
| Max temperature | 120°C |
| Phase | 1 Phase |
| Motor | AC (IP54) |
| Power | 121W |
| Warranty | 1 Year |
Summary
See more specification See less specification

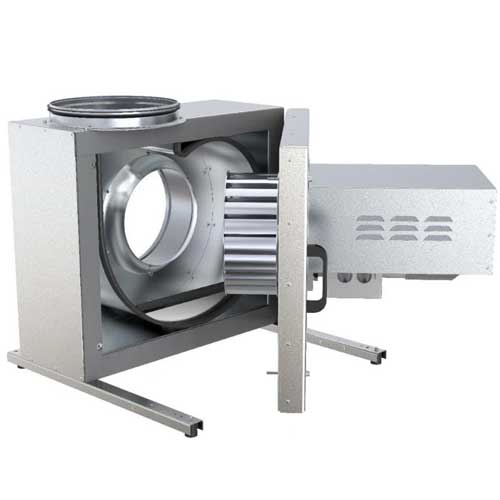

The Systemair KBT 160E4 Thermo is a 160mm kitchen centrifugal box fan built for extracting warm, greasy or contaminated air, rated for continuous duty up to 120°C. Its double-skinned, insulated casing moves up to 831 m³/h while keeping the running sound level low.
The single phase AC motor is protected by integral thermal contacts, with weather protection fitted as standard, and the fan is fully speed controllable. A swing-out inspection door and a drain plug make cleaning and maintenance straightforward, which suits it to commercial kitchens and canteens.
- Extracts air up to 120°C
- Airflow up to 831 m³/h
- Speed controllable
- Integral thermal contacts protect the motor
- Double-skinned casing with 50mm mineral wool insulation
- Swing-out door and drain plug for easy maintenance
Specifications
| Brand | Systemair |
| Model | KBT 160E4 Thermo |
| Type | Kitchen centrifugal box fan |
| Duct diameter | 160mm |
| Max airflow | 831 m³/h |
| Max temperature | 120°C |
| Phase | 1 Phase |
| Motor | AC (IP54) |
| Power | 121W |
| Warranty | 1 Year |
Manuals & Guides
Product Description
The Systemair KBT 160E4 Thermo is a 160mm kitchen centrifugal box fan built for extracting warm, greasy or contaminated air, rated for continuous duty up to 120°C. Its double-skinned, insulated casing moves up to 831 m³/h while keeping the running sound level low.
The single phase AC motor is protected by integral thermal contacts, with weather protection fitted as standard, and the fan is fully speed controllable. A swing-out inspection door and a drain plug make cleaning and maintenance straightforward, which suits it to commercial kitchens and canteens.
- Extracts air up to 120°C
- Airflow up to 831 m³/h
- Speed controllable
- Integral thermal contacts protect the motor
- Double-skinned casing with 50mm mineral wool insulation
- Swing-out door and drain plug for easy maintenance
Specifications
| Brand | Systemair |
| Model | KBT 160E4 Thermo |
| Type | Kitchen centrifugal box fan |
| Duct diameter | 160mm |
| Max airflow | 831 m³/h |
| Max temperature | 120°C |
| Phase | 1 Phase |
| Motor | AC (IP54) |
| Power | 121W |
| Warranty | 1 Year |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Systemair KBT 160E4 used for?
It is a kitchen extract fan for moving warm or greasy air from commercial kitchens, canteens and similar spaces.
What temperature can it handle?
It is rated for transported air up to 120°C, including when running under speed control.
What airflow does it deliver?
It moves up to 831 m³/h at free delivery, reducing as system static pressure increases.
Is the fan speed controllable?
Yes. It can be run at reduced speed with a compatible Systemair speed controller such as the REU 1.5.
How is the motor protected?
The motor has integral thermal contacts and standard weather protection, and is rated to IP54.
What warranty is included?
It comes with a 12 month manufacturer warranty from Systemair.
