Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | SSQU1/4-3HT |
| Type | High temperature centrifugal box fan |
| Spigot diameter | 315mm |
| Max airflow | 1930 m³/h |
| Max temperature | 120°C |
| Phase | 3 Phase |
| Motor | AC (IP55 TEFC) |
| Power | 270W |
| Warranty | 2 Years |
Summary
See more specification See less specification

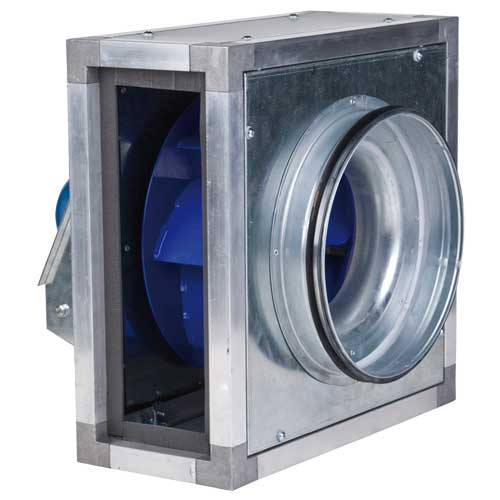

The Elta Slim Qube SSQU1 is a high temperature centrifugal box fan built for kitchen, commercial and process extract where the air can reach up to 120°C. Its double-skinned casing and backward-curved impeller move up to 1930 m³/h while keeping running noise low.

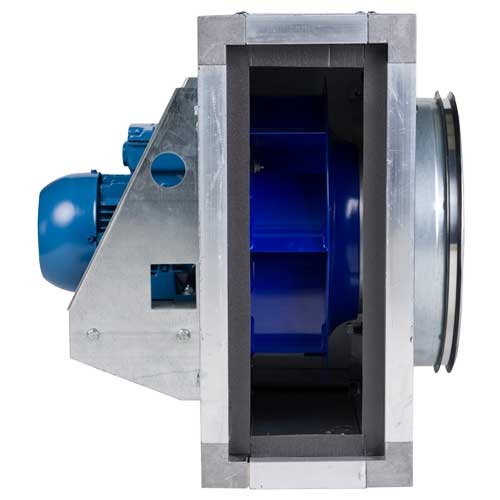

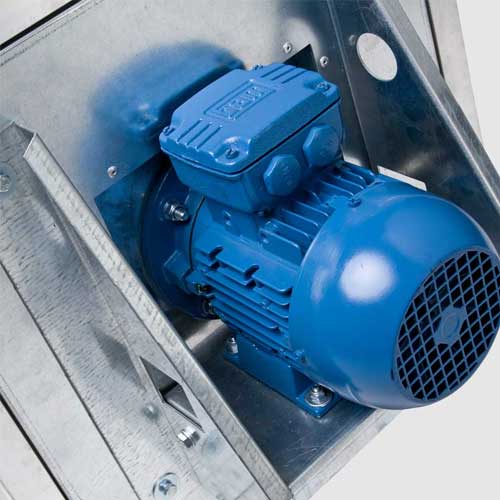

Because the three phase AC motor sits outside the airstream, it is unaffected by grease, fumes or heat carried in the extracted air. The panels are filled with 25mm acoustic insulation, the discharge position can be altered on site, and the fan is fully speed controllable through an Eltadrive inverter on a 1 phase or 3 phase supply.
- Handles extract air up to 120°C
- Motor mounted out of the airstream
- Airflow up to 1930 m³/h
- Inverter speed controllable (1Ph or 3Ph)
- Double-skinned panels with 25mm acoustic insulation
- Repositionable outlet for flexible installation
Specifications
| Brand | Elta |
| Model | SSQU1/4-3HT |
| Type | High temperature centrifugal box fan |
| Spigot diameter | 315mm |
| Max airflow | 1930 m³/h |
| Max temperature | 120°C |
| Phase | 3 Phase |
| Motor | AC (IP55 TEFC) |
| Power | 270W |
| Warranty | 2 Years |
Manuals & Guides
Elta Slim Qube SSQU1 High Temperature Fan Datasheet
Elta Slim Qube SSQU1 High Temperature Fan Installation Guide
Product Description
The Elta Slim Qube SSQU1 is a high temperature centrifugal box fan built for kitchen, commercial and process extract where the air can reach up to 120°C. Its double-skinned casing and backward-curved impeller move up to 1930 m³/h while keeping running noise low.
Because the three phase AC motor sits outside the airstream, it is unaffected by grease, fumes or heat carried in the extracted air. The panels are filled with 25mm acoustic insulation, the discharge position can be altered on site, and the fan is fully speed controllable through an Eltadrive inverter on a 1 phase or 3 phase supply.
- Handles extract air up to 120°C
- Motor mounted out of the airstream
- Airflow up to 1930 m³/h
- Inverter speed controllable (1Ph or 3Ph)
- Double-skinned panels with 25mm acoustic insulation
- Repositionable outlet for flexible installation
Specifications
| Brand | Elta |
| Model | SSQU1/4-3HT |
| Type | High temperature centrifugal box fan |
| Spigot diameter | 315mm |
| Max airflow | 1930 m³/h |
| Max temperature | 120°C |
| Phase | 3 Phase |
| Motor | AC (IP55 TEFC) |
| Power | 270W |
| Warranty | 2 Years |
Manuals & Guides
Elta Slim Qube SSQU1 High Temperature Fan Datasheet
Elta Slim Qube SSQU1 High Temperature Fan Installation Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What temperature can the Slim Qube SSQU handle?
It is rated for continuous extract of air up to 120°C in the duct, with the motor mounted outside the airstream.
Is the fan speed controllable?
Yes. It is designed for inverter speed control using an Eltadrive variable speed drive on a 1 phase or 3 phase supply.
What airflow does the SSQU1 deliver?
It moves up to 1930 m³/h at free delivery, with performance reducing as static pressure rises.
Is it suitable for kitchen extract?
Yes. It is used for commercial kitchens, restaurants and canteens, as well as factories, schools and shower rooms.
Can the outlet position be changed?
Yes. Movable panels let the discharge position be altered on site to suit the installation.
What warranty is included?
Each SSQU high temperature fan carries a 24 month manufacturer warranty.
