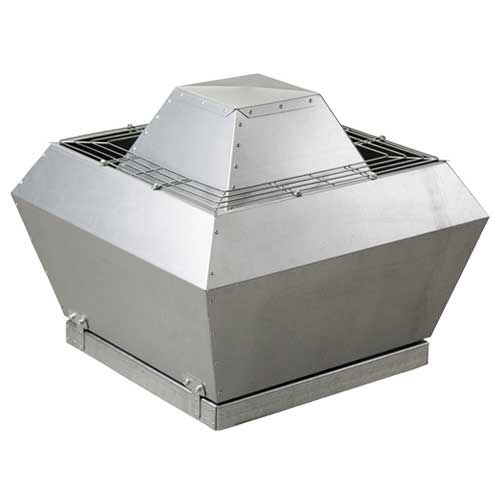

Elta Clearflow CFHT400 Roof Fan Three Phase AC - 400mm
Elta Clearflow CFHT400 Roof Fan Three Phase AC - 400mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | Clearflow CFHT400 |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 2912 m³/h |
| Phase | 3 Phase |
| Power | 378 W |
| Voltage | 380 to 415V |
| Max temperature | 120°C |
| Noise | 54 dBA at 3m |
Summary
See more specification See less specification
The Elta Clearflow CFHT400 is a 400mm high temperature rated vertical discharge centrifugal roof fan delivering airflow up to 2912 m³/h. Motors sit out of the air stream so it can handle clean, grease laden or contaminated air at temperatures up to 120°C.
Powered by a three phase IP55 TEFC AC motor, it suits commercial kitchen, catering, industrial, bakery and foundry extract. The all metal pre-galvanised steel casing mounts at angles up to 15 degrees for direct fitting to pitched roofs, with a wind guard fitted as standard.
- 3 Phase
- AC motor
- Up to 2912 m³/h
- Speed controllable
Specifications
| Brand | Elta |
| Model | Clearflow CFHT400 |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 2912 m³/h |
| Phase | 3 Phase |
| Power | 378 W |
| Voltage | 380 to 415V |
| Max temperature | 120°C |
| Noise | 54 dBA at 3m |
| Warranty | 12 months |
Manuals & Guides
Product Description
The Elta Clearflow CFHT400 is a 400mm high temperature rated vertical discharge centrifugal roof fan delivering airflow up to 2912 m³/h. Motors sit out of the air stream so it can handle clean, grease laden or contaminated air at temperatures up to 120°C.
Powered by a three phase IP55 TEFC AC motor, it suits commercial kitchen, catering, industrial, bakery and foundry extract. The all metal pre-galvanised steel casing mounts at angles up to 15 degrees for direct fitting to pitched roofs, with a wind guard fitted as standard.
- 3 Phase
- AC motor
- Up to 2912 m³/h
- Speed controllable
Specifications
| Brand | Elta |
| Model | Clearflow CFHT400 |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 2912 m³/h |
| Phase | 3 Phase |
| Power | 378 W |
| Voltage | 380 to 415V |
| Max temperature | 120°C |
| Noise | 54 dBA at 3m |
| Warranty | 12 months |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What airflow does the Elta Clearflow CFHT400 deliver?
It delivers up to 2,912 m³/h at free air.
What temperature can the CFHT400 handle?
The CFHT high temperature range is rated for air up to 120°C.
Is the CFHT400 single or three phase?
It runs on a three phase 380 to 415V AC supply.
Can the CFHT400 handle grease laden air?
Yes, the motor sits out of the air stream so it suits contaminated and grease laden extract.
What roof pitch can the CFHT400 be mounted on?
It can be mounted at angles up to 15 degrees, so it fits directly to pitched roofs.
Can the CFHT400 fan speed be controlled?
Yes, it is speed controllable using an Eltadrive variable speed drive.
