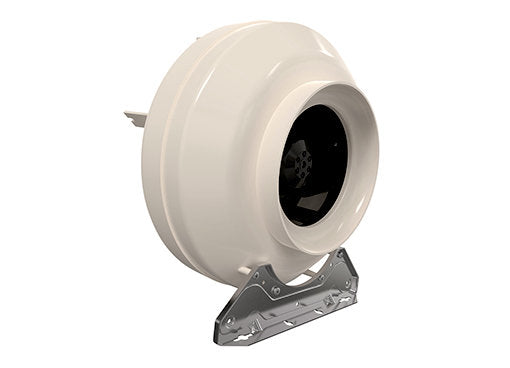

Systemair RVK 100E2 Duct Fan AC Motor - 100mm/4"
Product Description
The Systemair RVK 100E2 is part of the RVK series of inline duct fans, designed for installation in circular ducting. The casing is manufactured from PA6 fibreglass-reinforced plastic for a low-leakage, airtight construction, and together with the IP44-rated terminal box this makes it suitable even for duct-connected wet-room applications. It delivers up to 184 m³/h through 100 mm duct.
- Airflow up to 184 m³/h; 100 mm connection
- Speed-controllable AC, 230 V, 1~, 50 Hz (stepless thyristor or 5-step transformer)
- Backward-curved external-rotor motor; integral thermal contacts (auto reset)
- Airtight PA6 fibreglass-reinforced casing; IP44 terminal box; wet-room capable
- Can be installed in any position; FK mounting clamp included (reduces vibration)
- Maintenance-free; suitable for air temperatures up to 70°C
Suitable for
- Duct-mounted extract and supply, including wet-room applications
- Commercial and domestic circular duct systems
Installation
Installs in any position using the FK mounting clamp, which eases fitting/removal and isolates vibration. Speed control via thyristor or 5-step transformer. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | RVK 100E2 |
| Type | Inline circular duct fan |
| Duct connection | 100 mm |
| Airflow (max) | 184 m³/h |
| Motor | External-rotor AC, speed-controllable (230 V, 1~, 50 Hz) |
| Casing | PA6 fibreglass-reinforced plastic (airtight; wet-room capable) |
| Protection | IP44 terminal box; integral thermal contacts (auto reset) |
| Max air temperature | 70°C |
| Mounting | Any position; FK bracket included |
Manuals & Guides
Systemair RVK 100E2 Datasheet
