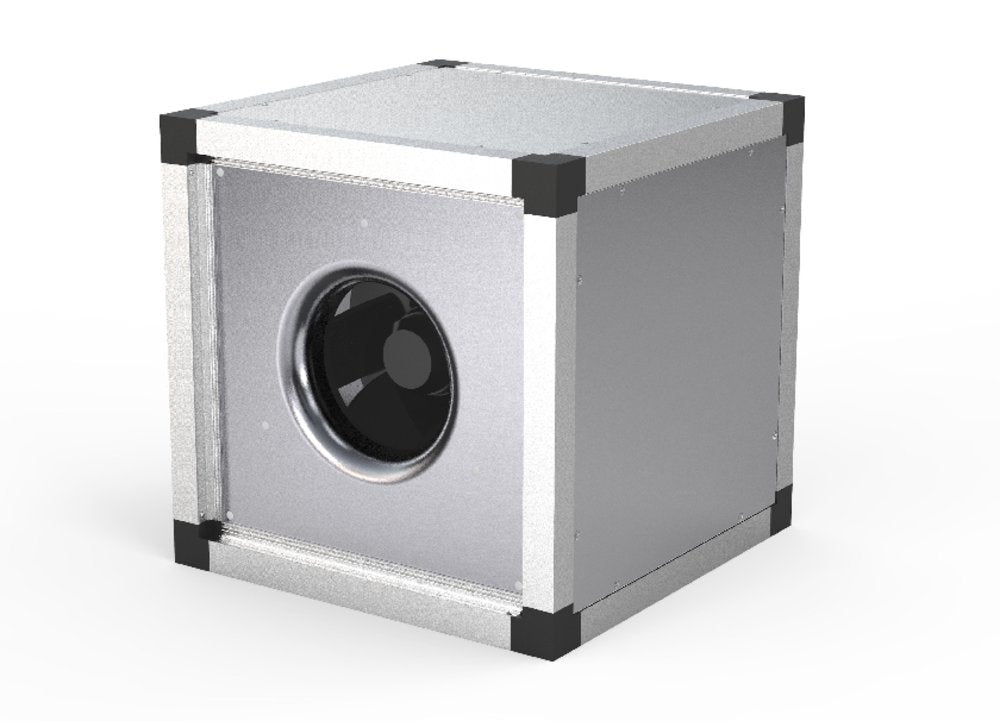

Systemair MUB 500EV Multibox Extractor Fan - 1 Phase
Systemair MUB 500EV Multibox Extractor Fan - 1 Phase
£2,457.99
SKU: 235406

Systemair MUB 500EV Multibox Extractor Fan - 1 Phase

1 Phase
AC Motor
Up to 7488 m³/h
Estimated delivery
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Systemair
Model MUB 042 500EV
Type Multibox centrifugal box fan
Phase 1 Phase
Motor Voltage-controllable external rotor AC
Maximum airflow Up to 7,488 m³/h
Impeller Backward-curved, aluminium
Casing Aluminium frame with PA6 corners
Insulation 30 mm glass wool
Warranty 1 Year Manufacturer

Summary

The Systemair MUB 500EV is a single-phase Multibox centrifugal box fan built for continuous commercial and industrial extract or supply duty, delivering up to 7,488 m³/h. Its backward-curved aluminium impeller and insulated casing suit commercial kitchen extract systems when positioned at least 3 metres from the canopy, as well as general building ventilation.

The self-supporting aluminium frame carries impact-resistant PA6 corners and 30 mm glass wool insulation for low noise and thermal stability. It runs on a voltage-controllable external rotor AC motor with integral thermal contacts, and removable panels let the airflow direction be reconfigured on site. The fan can be mounted in any position and its speed adjusted through a compatible transformer or frequency-inverter controller.

See more specification See less specification

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. Depending on the version, output control via transformer, star-delta switching or frequency inverter is possible.

• Speed-controllable
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable

Suitable for
Commercial kitchen extract systems when positioned 3 meter from canopy.
Depending on the version, equipped with voltage controllable external rotor motors or frequency inverter controllable IE2 standard motors.

Installation
Integrated thermal contacts with cables for connection to a motor protection switching device. The IE2 motors are equipped with PTC thermistors with cables for connection to a motor protection switching device.

Specifications

Brand Systemair
Phase 1 Phase
Warranty 1 Year Manufacturer


Manuals & Guides
Systemair MUB 500EV Kitchen Extractor Fan AC Motor - 1 Phase data sheet

Product Description

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. Depending on the version, output control via transformer, star-delta switching or frequency inverter is possible.

• Speed-controllable
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable

Suitable for
Commercial kitchen extract systems when positioned 3 meter from canopy.
Depending on the version, equipped with voltage controllable external rotor motors or frequency inverter controllable IE2 standard motors.

Installation
Integrated thermal contacts with cables for connection to a motor protection switching device. The IE2 motors are equipped with PTC thermistors with cables for connection to a motor protection switching device.

Specifications

Brand Systemair
Phase 1 Phase
Warranty 1 Year Manufacturer


Manuals & Guides
Systemair MUB 500EV Kitchen Extractor Fan AC Motor - 1 Phase data sheet

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What is the maximum airflow of the Systemair MUB 500EV?

It moves up to 7,488 m³/h at maximum speed, based on the Systemair datasheet for the MUB 042 500EV.

Is the MUB 500EV single or three phase?

It is a single-phase 230V fan with a voltage-controllable external rotor AC motor.

Can the fan speed be controlled?

Yes. Speed is adjustable using a compatible transformer or frequency-inverter controller to suit the required duty.

Is it suitable for commercial kitchen extract?

Yes, provided it is positioned at least 3 metres from the canopy, in line with Systemair's guidance.

Can it be installed in any position?

Yes. It can be mounted in any position, and removable panels let you change the airflow direction to suit the installation.

What motor protection does it have?

Integral thermal contacts are fitted for connection to an external motor protection switching device.
