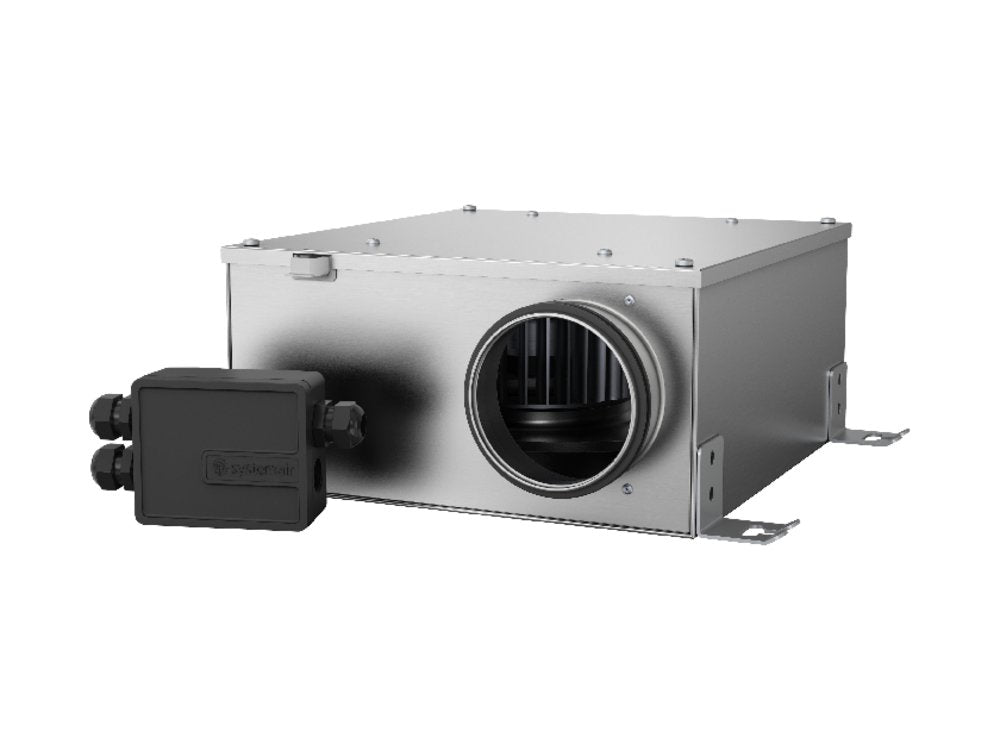

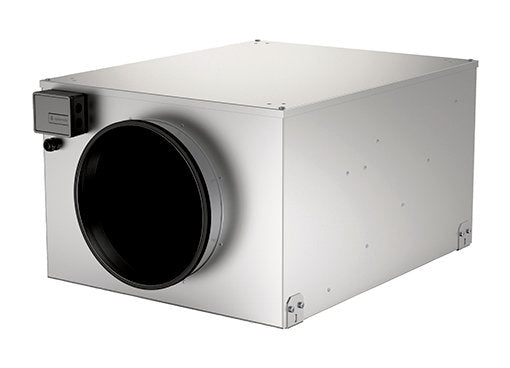

Systemair KVK Slim 500 EC Box Fan - 500mm
Systemair KVK Slim 500 EC Box Fan - 500mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | KVK Slim 500 EC |
| Type | Insulated box fan, circular duct |
| Duct connection | 500 mm |
| Airflow (max) | 6268 m³/h |
| Motor | High-efficiency external-rotor EC; 0-10V potentiometer |
| Casing | AluZinc, corrosion class C4; insulated lid (IP54 motor) |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
The Systemair KVK Slim 500 EC is an energy-efficient insulated box fan with circular duct connections, delivering up to 6268 m³/h through 500 mm duct. The slim casing suits limited installation heights and the insulated lid keeps the sound level low.
- High efficiency with low SFP
- Energy-efficient external-rotor EC motor
- Pre-wired 0-10V potentiometer, speed control 0-100%
- Slim design, installs in any position
- AluZinc casing, corrosion class C4 (indoor/outdoor)
- Integrated motor protection and soft-start; Modbus (315-500)
Suitable for
- Commercial and domestic supply or extract ventilation
- Energy-conscious duct systems where installation height is limited
Installation
The fan can be installed in any position, indoors or outdoors. The FK mounting clamp (accessory) eases installation and prevents vibration transfer to the duct. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | KVK Slim 500 EC |
| Duct connection | 500 mm circular |
| Airflow (max) | 6268 m³/h |
| Motor | External-rotor EC; 0-10V potentiometer |
| Casing | AluZinc C4; insulated lid (IP54 motor) |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair KVK Slim 500 EC Box Fan Datasheet
Product Description
The Systemair KVK Slim 500 EC is an energy-efficient insulated box fan with circular duct connections, delivering up to 6268 m³/h through 500 mm duct. The slim casing suits limited installation heights and the insulated lid keeps the sound level low.
- High efficiency with low SFP
- Energy-efficient external-rotor EC motor
- Pre-wired 0-10V potentiometer, speed control 0-100%
- Slim design, installs in any position
- AluZinc casing, corrosion class C4 (indoor/outdoor)
- Integrated motor protection and soft-start; Modbus (315-500)
Suitable for
- Commercial and domestic supply or extract ventilation
- Energy-conscious duct systems where installation height is limited
Installation
The fan can be installed in any position, indoors or outdoors. The FK mounting clamp (accessory) eases installation and prevents vibration transfer to the duct. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | KVK Slim 500 EC |
| Duct connection | 500 mm circular |
| Airflow (max) | 6268 m³/h |
| Motor | External-rotor EC; 0-10V potentiometer |
| Casing | AluZinc C4; insulated lid (IP54 motor) |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair KVK Slim 500 EC Box Fan Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the KVK Slim 500 EC for?
An energy-efficient insulated box fan for supply or extract on 500 mm circular duct, for commercial and domestic ventilation.
How much air does it move?
Up to 6268 m³/h free-air through a 500 mm circular connection.
How is the speed controlled?
The EC motor has a pre-wired 0-100% potentiometer and can also be driven by an external 0-10V signal or demand sensors (CO2, temperature, humidity).
Why choose EC over AC?
The EC motor is significantly more energy-efficient with a low SFP and integrated electronic protection and soft-start.
Can it be mounted in any position?
Yes, the KVK Slim can be installed in any orientation, indoors or outdoors.
Who should install it?
As a mains fan it should be installed by a qualified electrician; the FK mounting clamp accessory eases fitting and reduces vibration.
