Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | KVK Slim 160 EC |
| Type | Insulated box fan, circular duct |
| Duct connection | 160 mm |
| Airflow (max) | 533 m³/h |
| Motor | High-efficiency external-rotor EC; 0-10V potentiometer |
| Casing | AluZinc, corrosion class C4; insulated lid (IP54 motor) |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

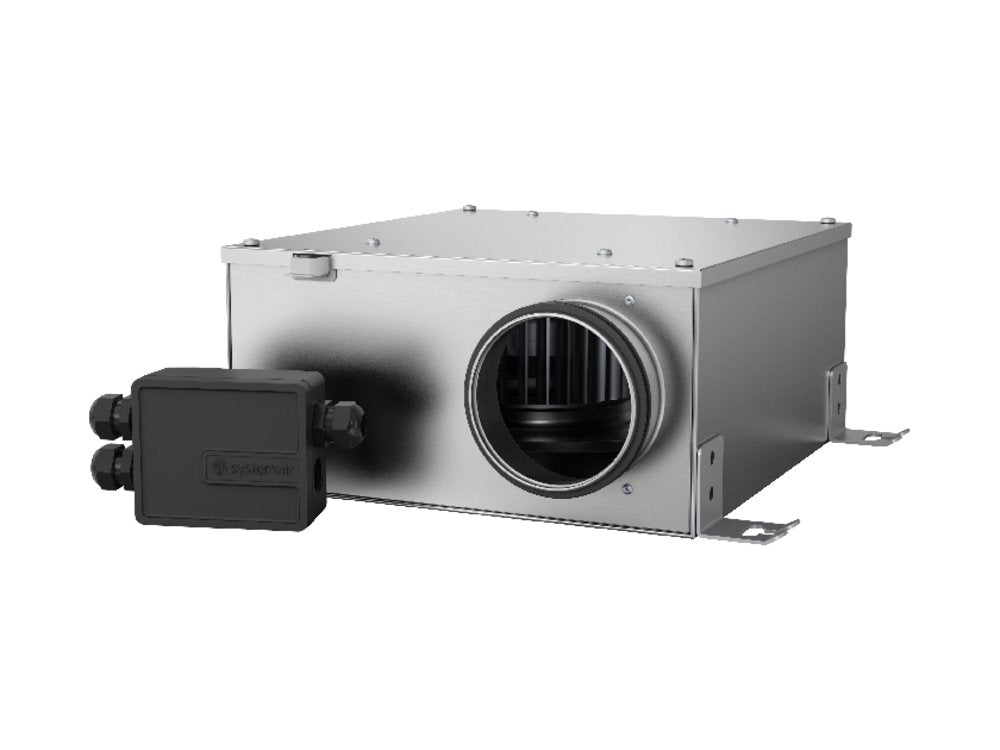

The Systemair KVK Slim 160 EC is an energy-efficient insulated box fan with circular duct connections, delivering up to 533 m³/h through 160 mm duct. The slim casing suits limited installation heights and the insulated lid keeps the sound level low.
- High efficiency with low SFP
- Energy-efficient external-rotor EC motor
- Pre-wired 0-10V potentiometer, speed control 0-100%
- Slim design, installs in any position
- AluZinc casing, corrosion class C4 (indoor/outdoor)
- Integrated motor protection and soft-start
Suitable for
- Commercial and domestic supply or extract ventilation
- Energy-conscious duct systems where installation height is limited
Installation
The fan can be installed in any position, indoors or outdoors. The FK mounting clamp (accessory) eases installation and prevents vibration transfer to the duct. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | KVK Slim 160 EC |
| Duct connection | 160 mm circular |
| Airflow (max) | 533 m³/h |
| Motor | External-rotor EC; 0-10V potentiometer |
| Casing | AluZinc C4; insulated lid (IP54 motor) |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair KVK Slim 160 EC Box Fan Datasheet
Product Description
The Systemair KVK Slim 160 EC is an energy-efficient insulated box fan with circular duct connections, delivering up to 533 m³/h through 160 mm duct. The slim casing suits limited installation heights and the insulated lid keeps the sound level low.
- High efficiency with low SFP
- Energy-efficient external-rotor EC motor
- Pre-wired 0-10V potentiometer, speed control 0-100%
- Slim design, installs in any position
- AluZinc casing, corrosion class C4 (indoor/outdoor)
- Integrated motor protection and soft-start
Suitable for
- Commercial and domestic supply or extract ventilation
- Energy-conscious duct systems where installation height is limited
Installation
The fan can be installed in any position, indoors or outdoors. The FK mounting clamp (accessory) eases installation and prevents vibration transfer to the duct. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | KVK Slim 160 EC |
| Duct connection | 160 mm circular |
| Airflow (max) | 533 m³/h |
| Motor | External-rotor EC; 0-10V potentiometer |
| Casing | AluZinc C4; insulated lid (IP54 motor) |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair KVK Slim 160 EC Box Fan Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the KVK Slim 160 EC for?
An energy-efficient insulated box fan for supply or extract on 160 mm circular duct, for commercial and domestic ventilation.
How much air does it move?
Up to 533 m³/h free-air through a 160 mm circular connection.
How is the speed controlled?
The EC motor has a pre-wired 0-100% potentiometer and can also be driven by an external 0-10V signal or demand sensors (CO2, temperature, humidity).
Why choose EC over AC?
The EC motor is significantly more energy-efficient with a low SFP and integrated electronic protection and soft-start.
Can it be mounted in any position?
Yes, the KVK Slim can be installed in any orientation, indoors or outdoors.
Who should install it?
As a mains fan it should be installed by a qualified electrician; the FK mounting clamp accessory eases fitting and reduces vibration.
