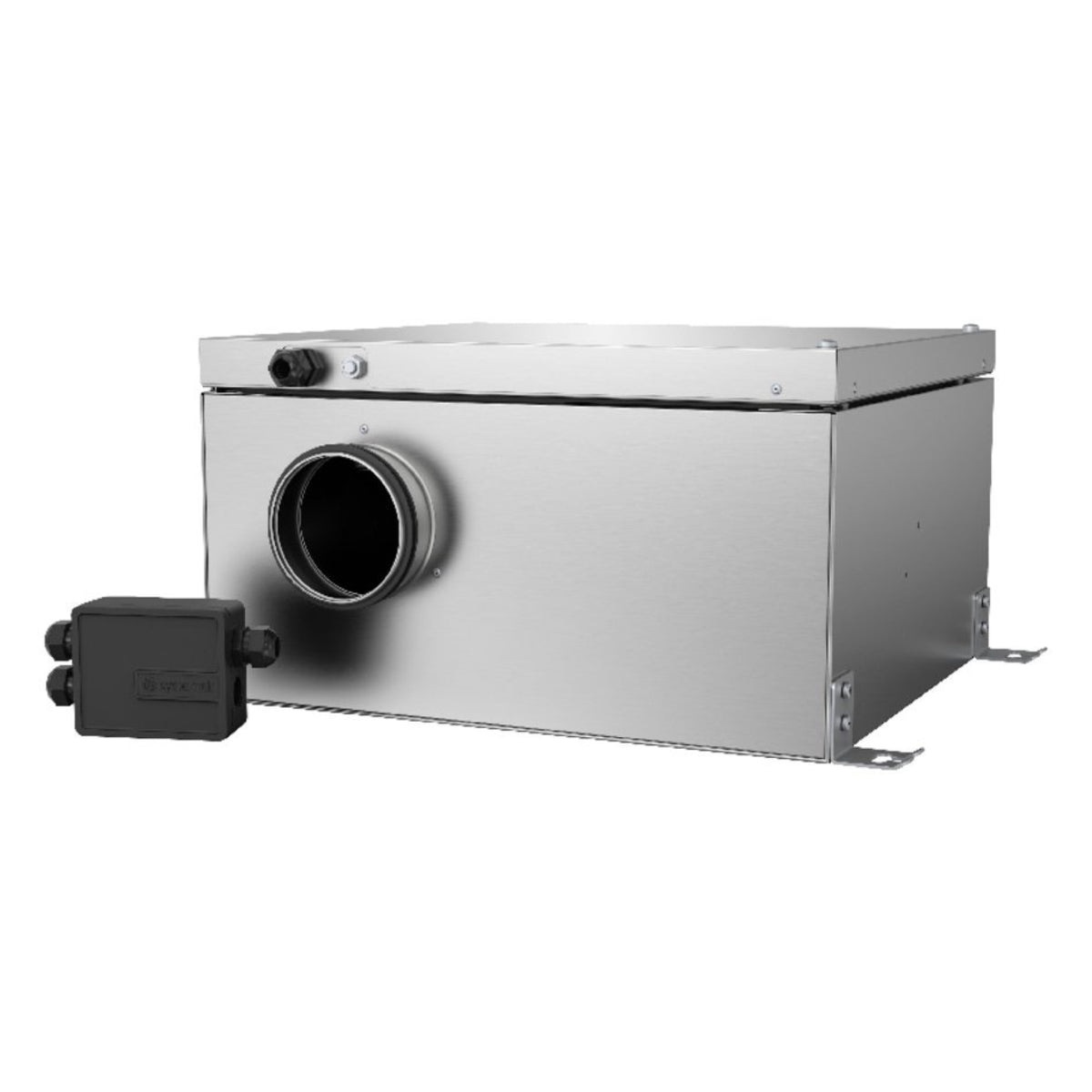

Systemair KVK Silent 100 EC Fan - 100mm
Systemair KVK Silent 100 EC Fan - 100mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | KVK Silent 100 EC |
| Type | Fully-insulated low-noise box fan |
| Duct connection | 100 mm |
| Airflow (max) | 311 m³/h |
| Motor | High-efficiency external-rotor EC; 0-10V potentiometer |
| Casing | AluZinc C4; fully insulated (lid + casing), IP54 motor |
| Insulation | High-density mineral wool |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
The Systemair KVK Silent 100 EC is a fully-insulated, low-noise box fan with circular duct connections, delivering up to 311 m³/h through 100 mm duct. Both lid and casing are lined with high-density mineral wool for excellent acoustic and thermal insulation.
- Very low noise – fully insulated lid and casing
- High-density mineral wool acoustic/thermal insulation
- Energy-efficient external-rotor EC motor
- Pre-wired 0-10V potentiometer, speed control 0-100%
- AluZinc casing, corrosion class C4 (indoor/outdoor)
- Integrated motor protection and soft-start
Suitable for
- Noise-sensitive commercial and domestic ventilation
- Supply or extract duct runs requiring quiet operation
Installation
The fan can be installed in any position, indoors or outdoors. The FK mounting clamp (accessory) eases installation and prevents vibration transfer to the duct. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | KVK Silent 100 EC |
| Duct connection | 100 mm circular |
| Airflow (max) | 311 m³/h |
| Motor | External-rotor EC; 0-10V potentiometer |
| Casing | AluZinc C4; fully insulated, IP54 motor |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Product Description
The Systemair KVK Silent 100 EC is a fully-insulated, low-noise box fan with circular duct connections, delivering up to 311 m³/h through 100 mm duct. Both lid and casing are lined with high-density mineral wool for excellent acoustic and thermal insulation.
- Very low noise – fully insulated lid and casing
- High-density mineral wool acoustic/thermal insulation
- Energy-efficient external-rotor EC motor
- Pre-wired 0-10V potentiometer, speed control 0-100%
- AluZinc casing, corrosion class C4 (indoor/outdoor)
- Integrated motor protection and soft-start
Suitable for
- Noise-sensitive commercial and domestic ventilation
- Supply or extract duct runs requiring quiet operation
Installation
The fan can be installed in any position, indoors or outdoors. The FK mounting clamp (accessory) eases installation and prevents vibration transfer to the duct. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | KVK Silent 100 EC |
| Duct connection | 100 mm circular |
| Airflow (max) | 311 m³/h |
| Motor | External-rotor EC; 0-10V potentiometer |
| Casing | AluZinc C4; fully insulated, IP54 motor |
| Max air temperature | +60°C |
| Warranty | 1 Year Manufacturer |
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the KVK Silent 100 EC for?
A low-noise, fully-insulated box fan for supply or extract on 100 mm circular duct where quiet operation matters.
How much air does it move?
Up to 311 m³/h free-air through a 100 mm circular connection.
How is it different from the KVK Slim?
The Silent has a fully-insulated casing (lid and body) with high-density mineral wool for lower radiated noise; the aerodynamic performance matches the Slim EC.
How is the speed controlled?
The EC motor has a pre-wired 0-100% potentiometer and accepts an external 0-10V signal or demand sensors.
Can it be mounted in any position?
Yes, indoors or outdoors, in any orientation.
Who should install it?
As a mains fan it should be installed by a qualified electrician; the FK mounting clamp accessory eases fitting.
