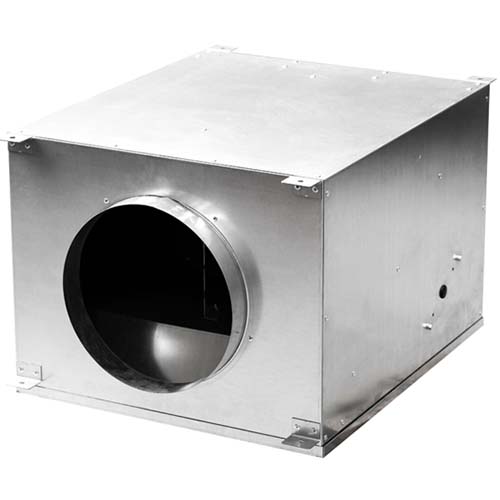

Elta SSDL200-1EC Singleflow Centrifugal Box Fan (7.1 speed)
Elta SSDL200-1EC Singleflow Centrifugal Box Fan (7.1 speed)
£823.99
SKU: SSDL200-1EC

Elta SSDL200-1EC Singleflow Centrifugal Box Fan (7.1 speed)

Up to 1148 m³/h
200 mm connection
EC motor
Estimated delivery
9 in stock
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Elta
Model SSDL200-1EC (Singleflow)
Type Centrifugal box fan
Duct connection 200 mm (circular spigot)
Airflow (max) 1148 m³/h
Static pressure (max) 623 Pa
Motor EC, speed-controllable
Impeller Backward-curved centrifugal
Max air temperature +60°C
Warranty 2 Year Manufacturer

Summary

The Elta SSDL200-1EC Singleflow is a centrifugal box fan for 200 mm ducting, moving up to 1148 m³/h. It's built for external mounting and uses an energy-efficient EC motor for low running costs.

An advanced backward-curved centrifugal impeller develops static pressures up to 623 Pa, and the casing is acoustically lined as standard. It can be configured with an optional terminal box, demand control and spigot type, and handles air up to +60°C.

See more specification See less specification

The Elta SSDL200-1EC Singleflow is a centrifugal box fan for 200 mm ducting, delivering up to 1148 m³/h. It's built for external mounting and uses an energy-efficient EC motor for low running costs.

  • Advanced backward-curved centrifugal impeller
  • Energy-efficient EC motor
  • Suitable for external mounting
  • Acoustically lined as standard
  • Static pressures up to 623 Pa
  • Configurable terminal box, demand control and spigot type

Suitable for

  • External-mounted commercial supply or extract ventilation
  • Higher-pressure duct systems needing energy efficiency

Installation

Suitable for external mounting; acoustically lined as standard. Should be installed on a suitable circuit by a qualified electrician.

Specifications

Brand Elta
Model SSDL200-1EC (Singleflow)
Duct connection 200 mm (circular spigot)
Airflow (max) 1148 m³/h
Static pressure (max) 623 Pa
Motor EC, speed-controllable
Impeller Backward-curved centrifugal
Max air temperature +60°C
Warranty 2 Year Manufacturer

Manuals & Guides
Elta SSDL200-1EC Singleflow Centrifugal Box Fan Datasheet

Product Description

The Elta SSDL200-1EC Singleflow is a centrifugal box fan for 200 mm ducting, delivering up to 1148 m³/h. It's built for external mounting and uses an energy-efficient EC motor for low running costs.

  • Advanced backward-curved centrifugal impeller
  • Energy-efficient EC motor
  • Suitable for external mounting
  • Acoustically lined as standard
  • Static pressures up to 623 Pa
  • Configurable terminal box, demand control and spigot type

Suitable for

  • External-mounted commercial supply or extract ventilation
  • Higher-pressure duct systems needing energy efficiency

Installation

Suitable for external mounting; acoustically lined as standard. Should be installed on a suitable circuit by a qualified electrician.

Specifications

Brand Elta
Model SSDL200-1EC (Singleflow)
Duct connection 200 mm (circular spigot)
Airflow (max) 1148 m³/h
Static pressure (max) 623 Pa
Motor EC, speed-controllable
Impeller Backward-curved centrifugal
Max air temperature +60°C
Warranty 2 Year Manufacturer

Manuals & Guides
Elta SSDL200-1EC Singleflow Centrifugal Box Fan Datasheet

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What is the Elta SSDL200-1EC for?

A singleflow centrifugal box fan for 200 mm duct, suitable for external mounting on higher-pressure systems.

How much air does it move?

Up to 1148 m³/h (0.319 m³/s), against static pressures up to 623 Pa.

Why choose EC?

The EC motor is energy-efficient and can be integrated with demand control for lower running costs.

Can it be mounted outside?

Yes – it's suitable for external mounting and acoustically lined as standard.

Can it be configured?

Yes – with an optional terminal box, demand control and spigot type.

Who should install it?

As a mains fan it should be installed on a suitable circuit by a qualified electrician.
