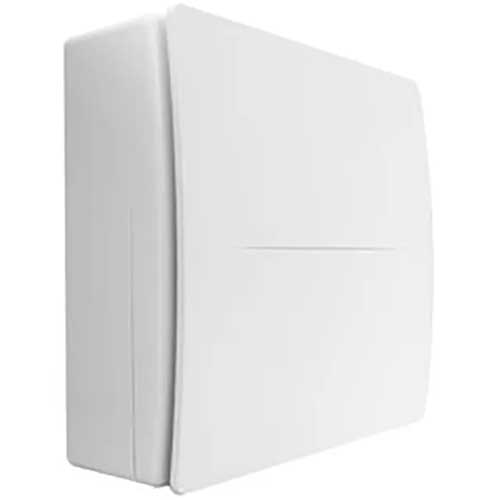

Systemair BF 100 HTX 246881 Centrifugal Fan
Systemair BF 100 HTX 246881 Centrifugal Fan
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Specifications
Product specifications
| Brand | Systemair |
| Model | BF 100 HTX (246881) |
| Type | Centrifugal ducting fan |
| Airflow | Up to 62 m³/h (free air) |
| Duct connection | 100 mm |
| Voltage | 230 V, 50/60 Hz |
| Power | 29 W |
| Noise level | 38 dB(A) @ 3 m |
| Control | Humidistat & timer, two-speed |
| IP rating | IPX4 |
| Filter | Removable PP |
Summary
See more specification See less specification
The Systemair BF 100 HTX is a compact yet powerful 100 mm centrifugal ducting fan designed to overcome the resistance of long ducting systems, for bathrooms, toilets and kitchens. Its forward-curved radial impeller and two-speed ball-bearing AC motor deliver strong performance, low noise and high efficiency, with a removable PP filter protecting the motor.
- Powerful centrifugal design for long duct runs; up to ~62 m³/h free air
- HTX version: on-board humidistat and run-on timer
- 230 V, 50/60 Hz; 29 W; 38 dB(A) @ 3 m
- Removable PP filter; two-speed AC motor on ball bearings
- IPX4 rated; double insulated; robust ABS in white RAL 9010
Suitable for
- Bathrooms, toilets and kitchens with long or restrictive duct runs
- Wall or ceiling installation
Installation
Connects to 100 mm circular ducting; suitable for long duct runs. Should be installed on a suitable circuit by a qualified electrician.
Product Description
The Systemair BF 100 HTX is a compact yet powerful 100 mm centrifugal ducting fan designed to overcome the resistance of long ducting systems, for bathrooms, toilets and kitchens. Its forward-curved radial impeller and two-speed ball-bearing AC motor deliver strong performance, low noise and high efficiency, with a removable PP filter protecting the motor.
- Powerful centrifugal design for long duct runs; up to ~62 m³/h free air
- HTX version: on-board humidistat and run-on timer
- 230 V, 50/60 Hz; 29 W; 38 dB(A) @ 3 m
- Removable PP filter; two-speed AC motor on ball bearings
- IPX4 rated; double insulated; robust ABS in white RAL 9010
Suitable for
- Bathrooms, toilets and kitchens with long or restrictive duct runs
- Wall or ceiling installation
Installation
Connects to 100 mm circular ducting; suitable for long duct runs. Should be installed on a suitable circuit by a qualified electrician.
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the BF 100 HTX for?
It's a powerful centrifugal 100 mm ducting fan for bathrooms, toilets and kitchens, designed to keep performing on long or restrictive duct runs where an axial fan would struggle.
How is the HTX version controlled?
It has an on-board humidistat and run-on timer, boosting automatically when humidity rises and running on for a preset period afterwards. It can also be switched manually.
What airflow and duct size does it use?
Up to about 62 m³/h in free air (with strong performance under pressure), connecting to 100 mm ducting.
Why centrifugal rather than axial?
Its forward-curved radial impeller develops much more pressure, so it maintains airflow through long duct runs.
Does it have a filter?
Yes, a removable PP filter protects the impeller and motor from dust and can be cleaned and refitted.
Is it suitable for a bathroom?
Yes, it's IPX4-rated and double insulated (no earth required). As a mains fan it should be installed by a qualified electrician.
