Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | AW 250E2 Sileo |
| Type | Plate axial fan |
| Diameter | 250mm |
| Max airflow | 1786 m³/h |
| Phase | Single phase |
| Motor | AC |
| Power | 148 W |
| Voltage | 230V, 50Hz |
| Max temp / IP | 65°C, IP44 |
Summary
See more specification See less specification

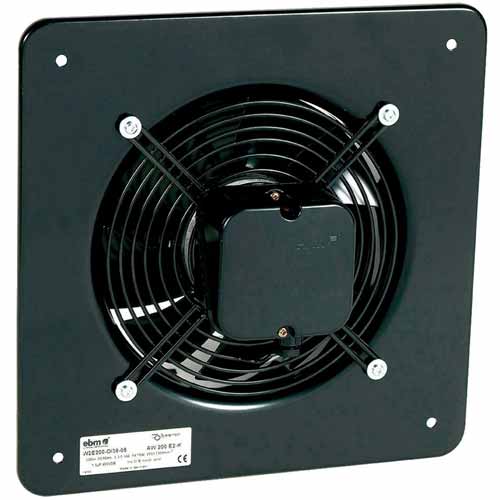

The Systemair AW 250E2 Sileo is a 250mm plate axial wall fan delivering up to 1786 m³/h of airflow. Its 2-pole external rotor motor and dynamically balanced impeller give strong, quiet performance.
The single phase AC motor runs on 230V and is speed controllable by voltage reduction. Rated IP44 with a maximum air temperature of 65°C, it suits kitchens, factories and warehouses. Supplied with capacitor and thermal contacts for motor protection.
- 1 Phase
- AC motor
- Up to 1786 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | AW 250E2 Sileo |
| Type | Plate axial fan |
| Diameter | 250mm |
| Max airflow | 1786 m³/h |
| Phase | Single phase |
| Motor | AC |
| Power | 148 W |
| Voltage | 230V, 50Hz |
| Max temp / IP | 65°C, IP44 |
Manuals & Guides
Systemair AW 250E2 Sileo Plate Axial Fan Single Phase - 250mm
Product Description
The Systemair AW 250E2 Sileo is a 250mm plate axial wall fan delivering up to 1786 m³/h of airflow. Its 2-pole external rotor motor and dynamically balanced impeller give strong, quiet performance.
The single phase AC motor runs on 230V and is speed controllable by voltage reduction. Rated IP44 with a maximum air temperature of 65°C, it suits kitchens, factories and warehouses. Supplied with capacitor and thermal contacts for motor protection.
- 1 Phase
- AC motor
- Up to 1786 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | AW 250E2 Sileo |
| Type | Plate axial fan |
| Diameter | 250mm |
| Max airflow | 1786 m³/h |
| Phase | Single phase |
| Motor | AC |
| Power | 148 W |
| Voltage | 230V, 50Hz |
| Max temp / IP | 65°C, IP44 |
Manuals & Guides
Systemair AW 250E2 Sileo Plate Axial Fan Single Phase - 250mm
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What airflow does the AW 250E2 Sileo deliver?
It delivers up to 1786 m³/h at 250mm diameter.
Is this fan single or three phase?
It is single phase, running on 230V 50Hz.
Can the speed be controlled?
Yes, it is speed controllable by voltage reduction using a compatible controller.
What is the maximum air temperature?
It handles transported air up to 65°C and is rated IP44.
What motor does it use?
A 2-pole external rotor AC motor rated 148 W, supplied with capacitor.
Where can this fan be installed?
It can be mounted in any position and suits kitchens, factories and warehouses.
