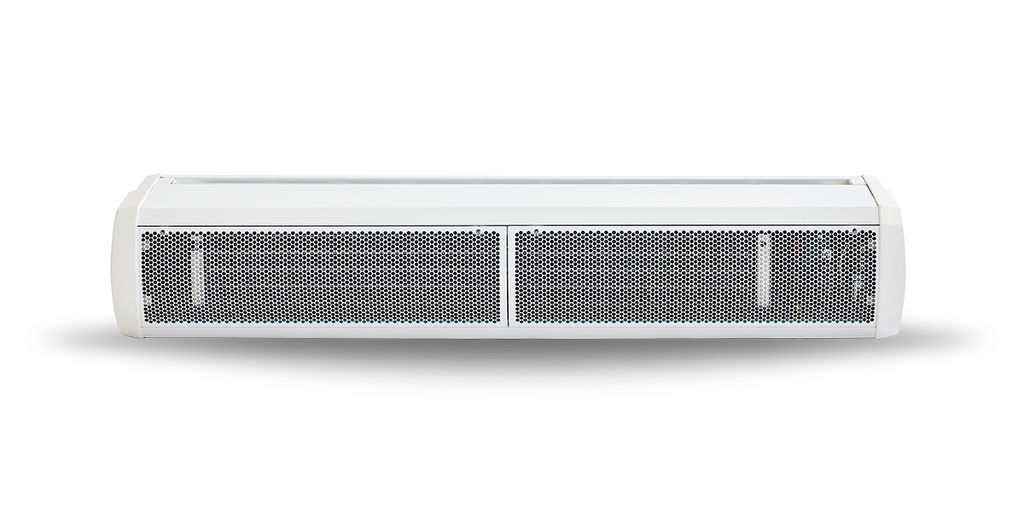

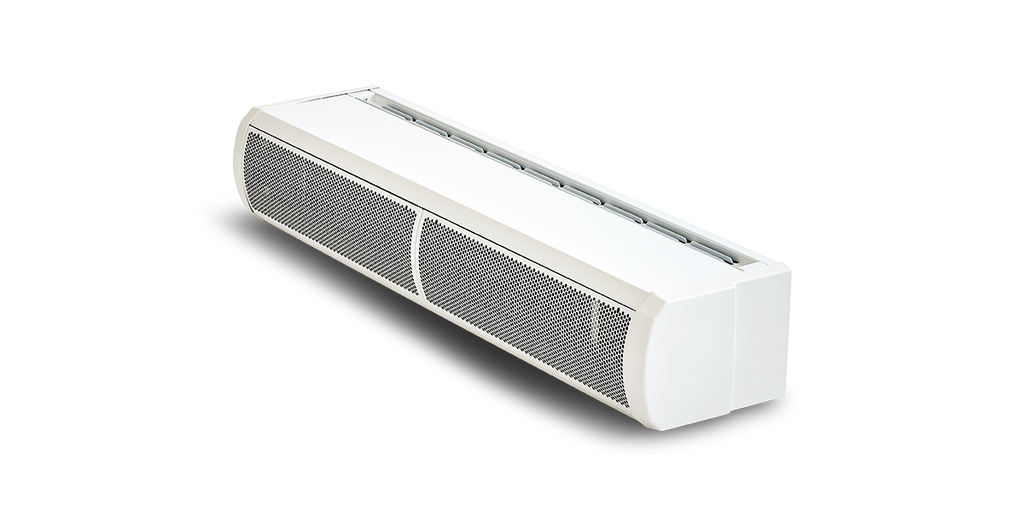

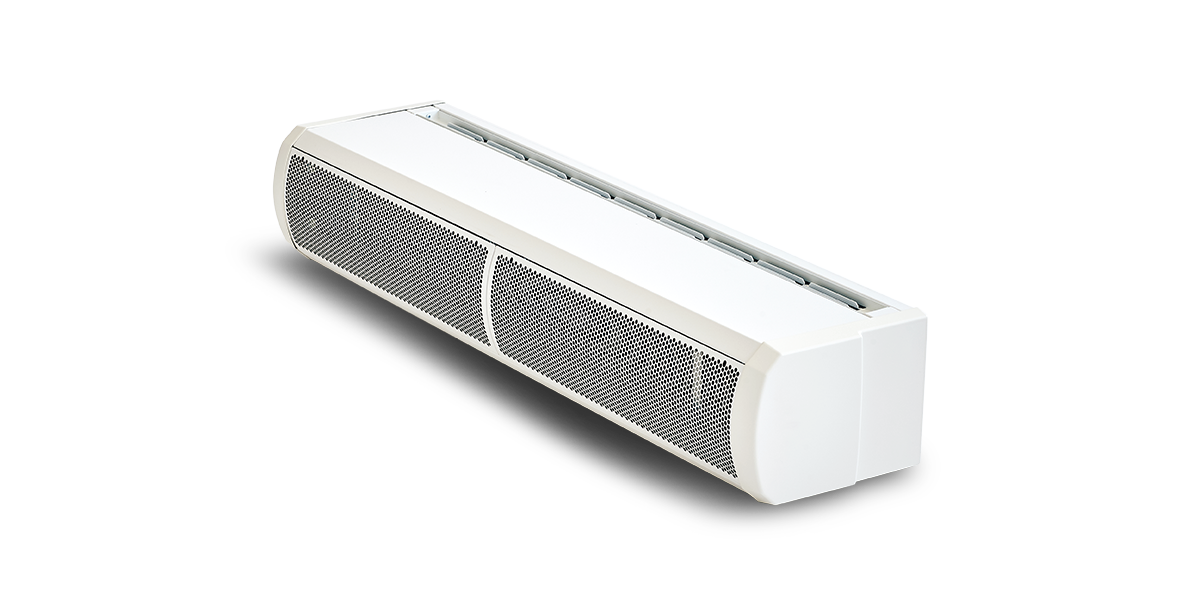

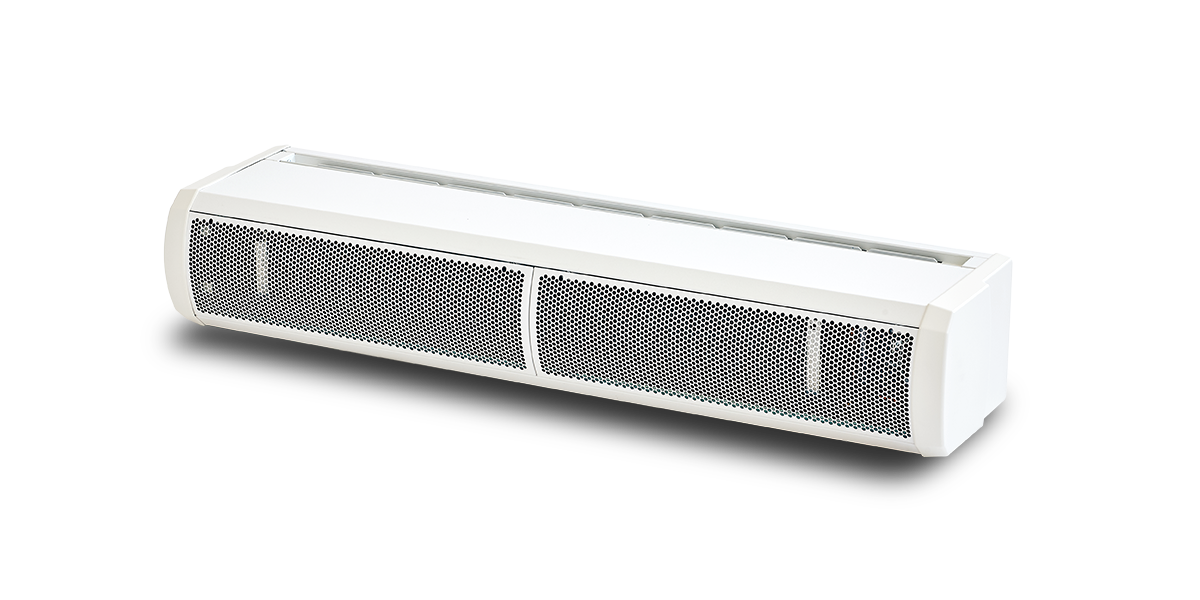

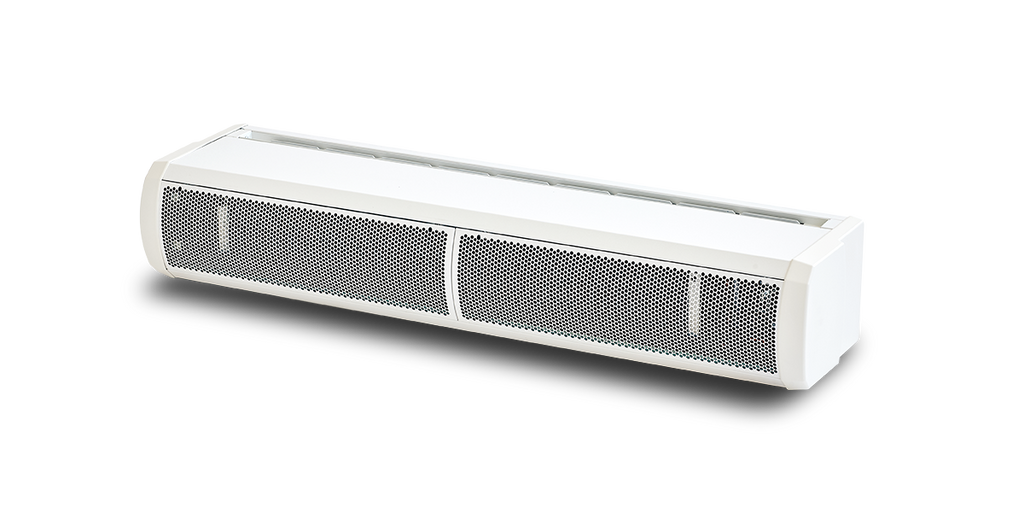

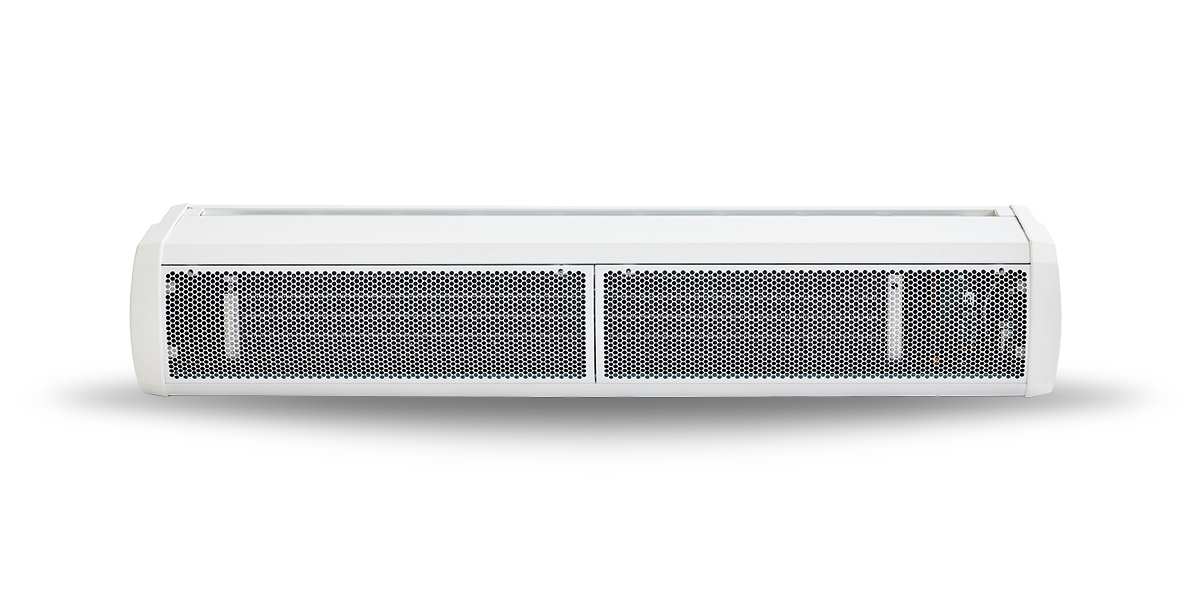

Thermoscreens C2000ENT Surface Mounted Air Curtain (Electric) 1431457000
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Thermoscreens |
| Dimensions (L × H × D) | 2200 × 275 × 198 mm |
| Mounting | Surface mounted |
| Heating source | Electric |
| Heat output (low / high) | 9 / 18 kW |
| Max air volume | 2500 m³/h |
| Max air velocity | 9 m/s |
| Power supply | 400 V 3N~ 50 Hz |
| Sound (high/mid/low) @ 3 m | 56/54/50 dB(A) |
| Colour | RAL 9016 White |
Summary
See more specification See less specification
Compact and cost-effective, Thermoscreens C Series air curtains are designed for applications with limited headspace above the door. With a choice of surface or recessed mounting, there is a C Series solution to suit almost any doorway, however restricted the space.
Features
- Compact, space-saving design
- Available ambient, water-heated or electric-heated
- Surface or recessed mounting
- Ecopower energy-saving controls
- ErP compliant and BMS ready
- Tangential fans for a powerful, linear air flow
- Integrated thermostat
- Instant-heat, high-efficiency heating element
- Supplied with wall brackets as standard; ceiling fixings provided (excluding drop-rods)
- Joining kits available for connecting surface-mounted units
Suitable for
- Small commercial entrances
- Restaurants, offices, retail and schools
Installation
Horizontal mounting above the door at a recommended height of up to 3.0 m. As a three-phase heated unit, it should be wired by a qualified electrician.
Product Description
Compact and cost-effective, Thermoscreens C Series air curtains are designed for applications with limited headspace above the door. With a choice of surface or recessed mounting, there is a C Series solution to suit almost any doorway, however restricted the space.
Features
- Compact, space-saving design
- Available ambient, water-heated or electric-heated
- Surface or recessed mounting
- Ecopower energy-saving controls
- ErP compliant and BMS ready
- Tangential fans for a powerful, linear air flow
- Integrated thermostat
- Instant-heat, high-efficiency heating element
- Supplied with wall brackets as standard; ceiling fixings provided (excluding drop-rods)
- Joining kits available for connecting surface-mounted units
Suitable for
- Small commercial entrances
- Restaurants, offices, retail and schools
Installation
Horizontal mounting above the door at a recommended height of up to 3.0 m. As a three-phase heated unit, it should be wired by a qualified electrician.
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What makes the Thermoscreens C2000ENT suitable for tight spaces?
The C Series is specifically designed for doorways with limited headspace above the opening. Its compact, space-saving body suits surface or recessed mounting where taller air curtains won't fit.
How much heat does the C2000ENT provide?
It's an electric-heated unit with two output steps, 9 kW and 18 kW, on a 400 V three-phase supply, giving strong warm-air separation at the doorway.
Can it be recessed?
Yes, the C Series offers a choice of surface or recessed mounting. This unit is the surface-mounted version, supplied with wall brackets and ceiling fixings (excluding drop-rods).
What door height does it suit?
It's recommended for entrances up to 3.0 m high, mounted horizontally above the door. Joining kits are available to link surface-mounted units across wider openings.
Does it have energy-saving controls?
Yes, it includes Ecopower energy-saving controls, an integrated thermostat, and is ErP compliant and BMS ready, helping cut running costs and integrate with building management.
How much air does it move and how loud is it?
Maximum air volume is 2500 m³/h at up to 9 m/s, with sound levels of 56, 54, 50 dB(A) at 3 m across high, mid and low speeds. It should be installed by a qualified electrician.
