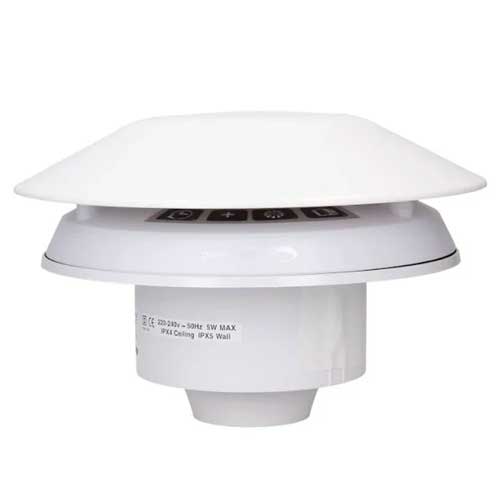

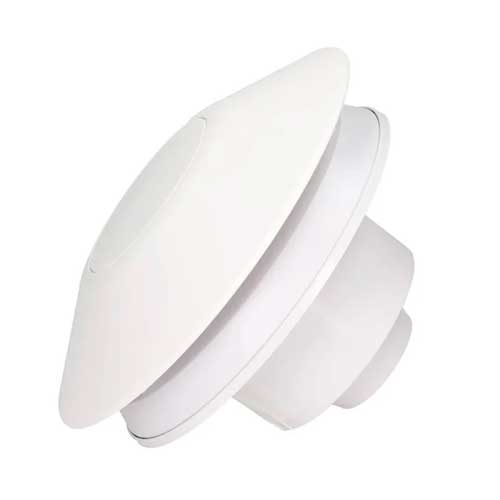

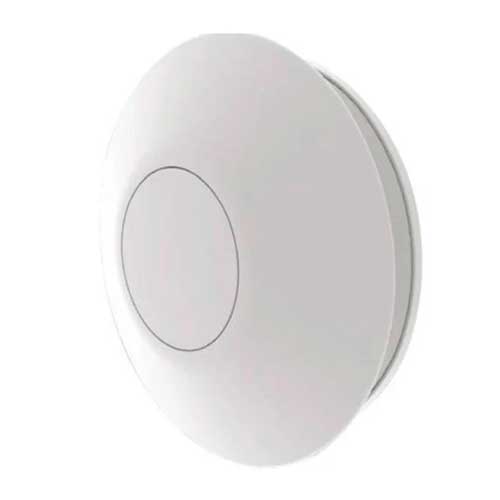

Unity CV2SVGIP is a dMEV (decentralised Mechanical Extract Ventilation) continuously running extract fan that complies with System 3 in the Building Regulations. Revolving around a one product concept, it is one single unit which can be applied to all wet rooms including kitchen, bathroom, utility and WCs. With an ultra-low energy DC motor and mixed flow impeller, Unity CV2SVGIP assists in the delivery of Guaranteed Installed Performance onsite, now a fundamental part of Building Regulation compliance.
The Unity CV2SVGIP utilises an innovative one product concept – One Fan, Any Room, All Installations and is one of the newest dMEV fans to be brought to the UK Market. It delivers a cutting edge performance as a result of its unique and innovative design.
Extremely quiet running – no nuisance noise.
SMART Technology – more efficiency, more effective and tangible savings
- CV2SVGIP Low Voltage, 24V DC
- Continuous running fan

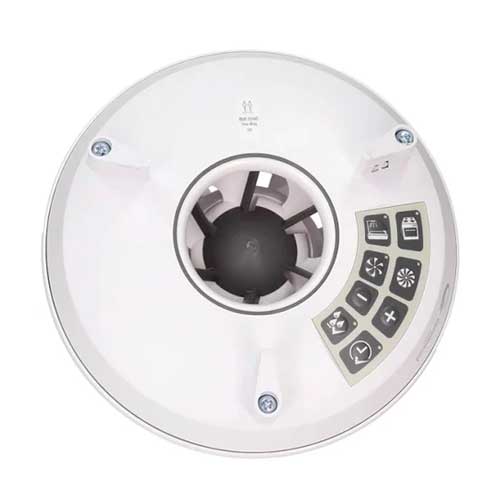

- Digital intelligent Timer and Humidity controls
- Low noise 10 - 23.5 dBA
- Low Energy
- IP X5 wall and IPX 4 ceiling
- Transformer included

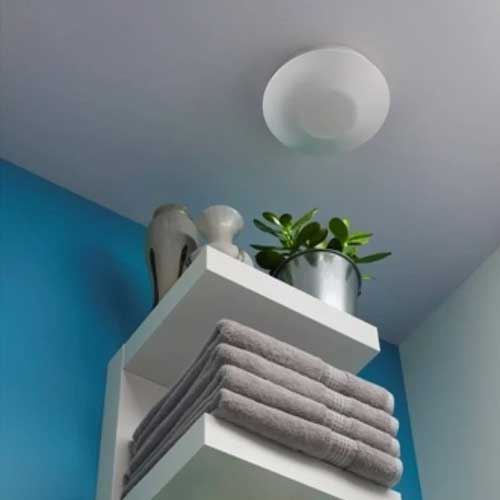

This fan is suitable for bathrooms, WCs or kitchens, in apartments or houses, for the wall or the ceiling.
The best of the rest - CV2SVGIP has a low energy EC motor, 9 registered design patents and a mixed flow backward curved impellor, increased performance, removing clogging as the rubber blade protectors attract duct

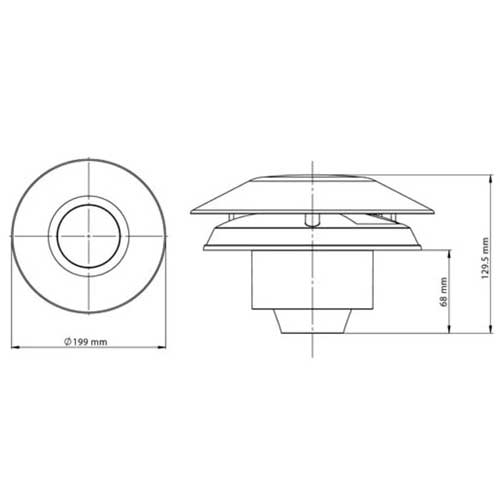

|199mm dia (ext dia) x 129.5mm
|Wall or Ceiling
|10.1 dba (at low trickle speed)

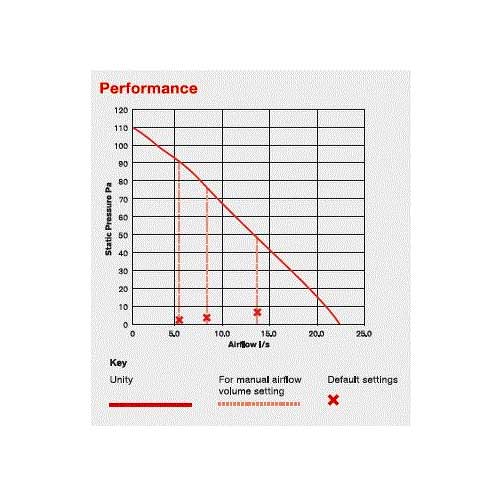

|75.6 cu m/hr (max)
|IPX4 Ceilings, IPX5 Walls
|Maximum Duct Run
|3m to 9m
|1.1w min - 4.1w max
|Zone 1, 2 and Outside
