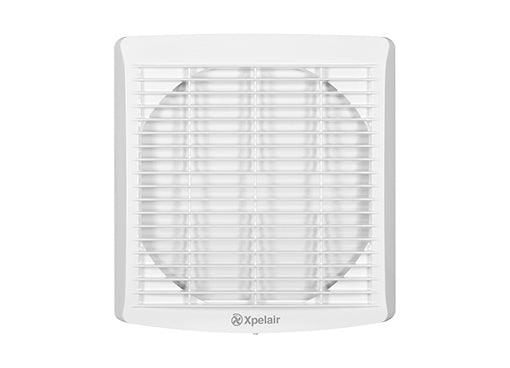

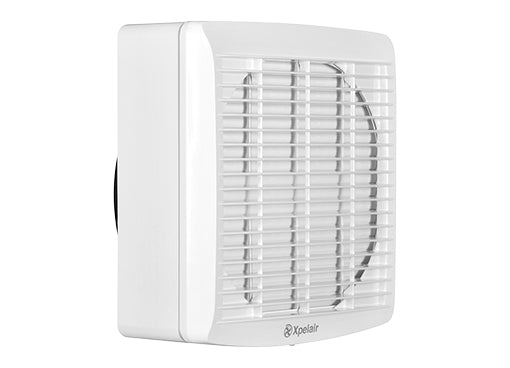

Xpelair GX6 EC Window Mounted Fan 071262
Product Description
PRODUCT CODE: 89994AW
Product Description
GX window fans have remained a byword for commercial window fans for over 40 years. The GX Axial fan can be applied to provide direct extraction to the outside of your home which is operated by remote switch or sensor. The unit and has the option of wall, window, or panel mounting with the supplied longer ladder strips and window fitting kit.
Features
- Single speed extract rate of 229m3/hr
- Low Watt EC motor giving low running costs
- 184mm spigot diameter
- Silent electro-thermal shutter
- Low noise level of 34dBA @3M
✓ Bathroom, Commercial, Utility Room, Office, Toilet, Warehouse and Kitchen.
Installation
- The extraction fan is suitable for connection to 220-240V 50/60Hz supply
- The fan can be wall or panel/window mounted supplied with longer ladder strips and optional wall kit
Specifications
Applicable Area
|
Bathroom, Commercial, Utility Room, Office, Toilet, Warehouse, Kitchen |
Brand | Xpelair |
Warranty | 2 Year Manufacturers |
Finish / Colour | White |
Dimensions (HxW) |
226mm x 210mm |
Depth | 148mm |
Extractor Type | Axial |
Duct Size Diameter |
184mm |
Fan Size Diameter | 150mm |
Fan Size Diameter Inches | 6 Inches |
Pull Cord | No |
Backdraft Shutter |
Yes |
Mounting | Panel, Wall, Window |
Number of fan Speeds | 1 |
Manuals & Guides
Xpelair GX6 EC Data Sheet
Xpelair_GX6 EC_Installation Instructions
