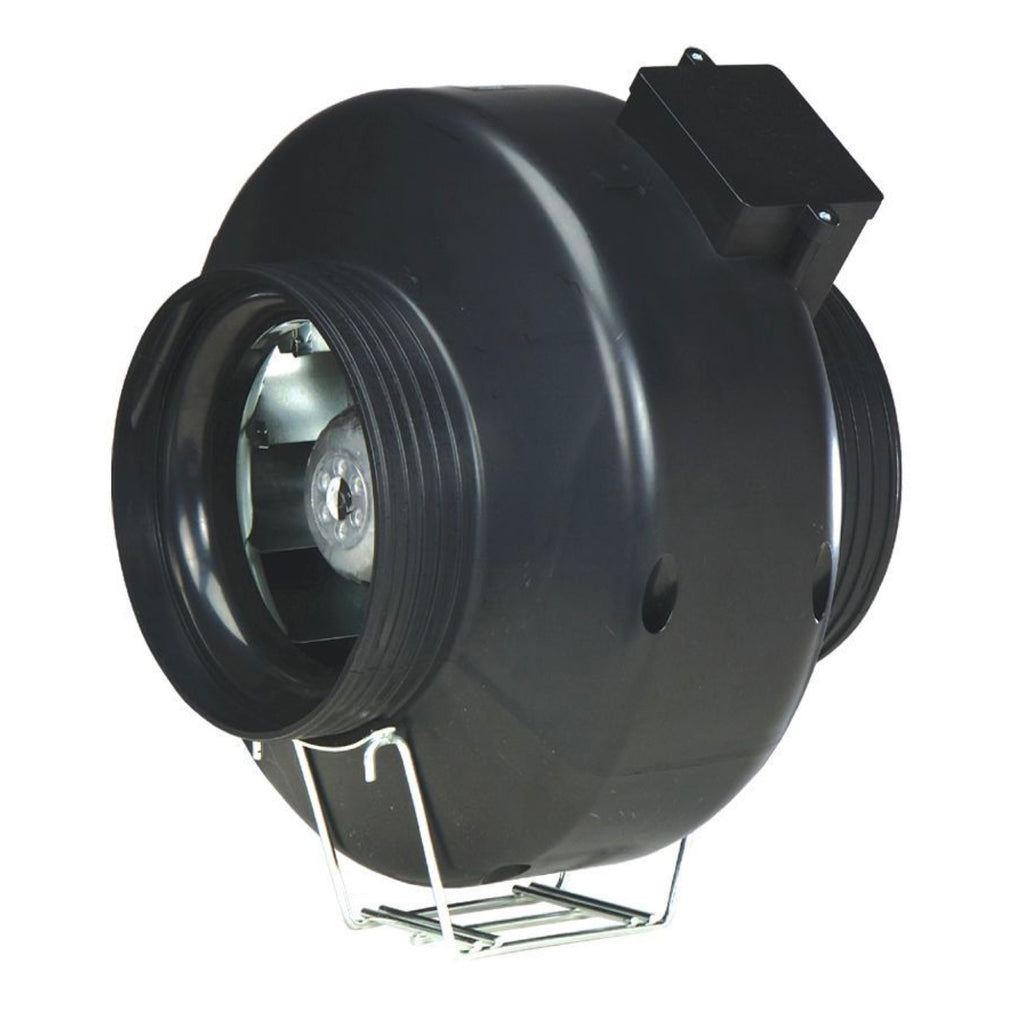

Vent Axia ACP150 12B Powerflow Inline Duct Fan - 150mm

Vent-AxiaPRODUCT CODE: ACP150
filler

Price:
£373.07

Stock:
Only 2 units left

Product Description

Vent Axia Powerflow models provide a compact yet versatile range designed with the installer in mind, combining the acoustic benefits of a tough plastic casing with the pressure characteristics of a centrifugal fan. A range of eight models from 100 to 315mm dia. duct sizes. The 300mm dia. model has been specifically developed for use with rigid ductwork.

Air volumes from 0.059m³/s to 0.42m³/s at free air and capable of pressure development up to 550 Pa. Powerflow has 50-80mm long inlet and discharge spigots allowing easy installation and fixing. The adjustable mounting foot allows the terminal box to be rotated to any angle and allows plenty of space and adjustment for screw fixing. The robust fire retardant polymeric casing combined with outlet guide vanes ensures optimum airflow management through the unit.

Key Features
  • Tough plastic in-line range in eight models
  • 50-80mm long ribbed spigots.
  • Flame retardant casing.
  • All models speed controllable.
  • Fitted with Standard Thermal Overload Protection (S.T.O.P.).

Electrical
Motors are 220-240V single phase 50Hz. Capacitor start and run. The terminal box is integral with the case molding. All motors are fitted with Standard Thermal Overload Protection (S.T.O.P.).

Motor/Impellers
All models are fitted with an external rotor motor and backward curved impeller assembly for long life and reliability.

All sizes are IP44 according to BS EN 60529. Ball bearings are greased for life and designed to run at any angle. Insulation is Class ‘B’ (from -30˚C to +40˚C). Manufacture is controlled to BS EN ISO 9001.


Specifications
Brand Vent Axia
Warranty 2 Year Manufacturers



Manuals & Guides
Vent Axia ACP Powerflow Inline Duct Fan datasheet
