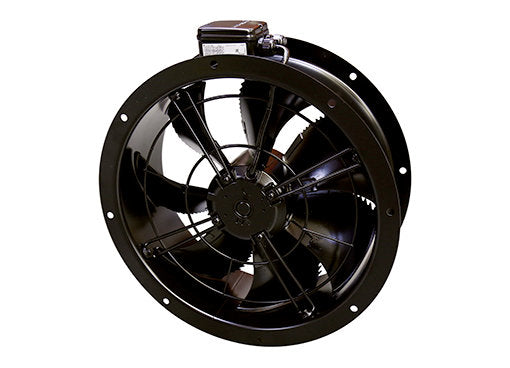

Systemair AR 400E4 Sileo Cased Axial Fan Single Phase - 400mm

SystemairPRODUCT CODE: 34467
filler

Price:
£467.74

Stock:

Product Description

Free running axial impeller made out of black high-performance composite material (sizes 200-450) or aluminium (sizes 450-1000), with specially designed blade geometry. Circular casing with Eurovent 1/2 compliant flanges made from galvanised steel. Sizes 200-630 include a protection guard on the intake side, black powder coated.

Installation
Integrated thermal contacts with cables for connection to a motor protection switching device.

Specifications

Norminal data
Voltage (Nominal) 230 V
Frequency 50 Hz
Phase(s) 1~
Motor circuit connection D
Input power 260 W
Input current 1.15 A
Impeller speed 1,320 r.p.m.
Air flow max 1.226 m³/s
Capacitance of capacitor 5 µF
Temperature of transported air max 55 °C
Max temperature of transported air, when speed controlled 55 °C
Sound data
Sound pressure level at 1m 66 dB(A)
Protection/Classification
Enclosure class, motor IP54
Insulation class F
Data according to ErP
ErP ready ErP 2018
Dimensions and weights
Duct dimension; Circular, inlet 400 mm
Duct dimension; Circular, outlet 400 mm
Weight 10.1 kg
Others
Duct connection type Circular
Color name, casing Black
Motor type AC

Manuals & Guides
Systemair AR 400E4 Sileo Cased Axial Fan Single Phase - 400mm Datasheet
