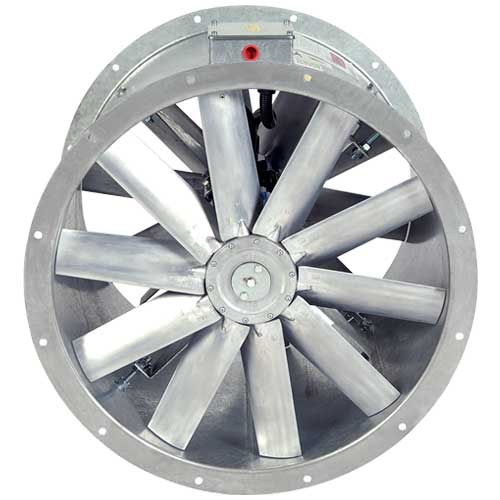

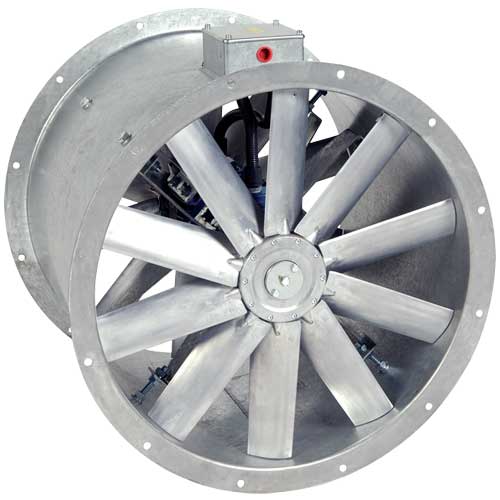

Elta Turboflow TF630 Contra Rotating Axial Flow Fan Single Phase AC - 630mm



In stock

Product Description

    • Standard size 630 mm
    • Air volume flow rates up to 4.6 m3/s
    • Static pressures up to 428 Pa
    • Suitable for operating temperatures up to +70℃ (speed control +50℃)
    • Ideal for internal or external use


The Turboflow TF is a two stage axial fan which has been specifically developed to tackle higher pressure requirements with a straightforward, efficient and definitive approach.


Motors are wired via a weatherproofed cable to an IP55 protected terminal box mounted on the outside of the unit casing for ease of electrical connection.

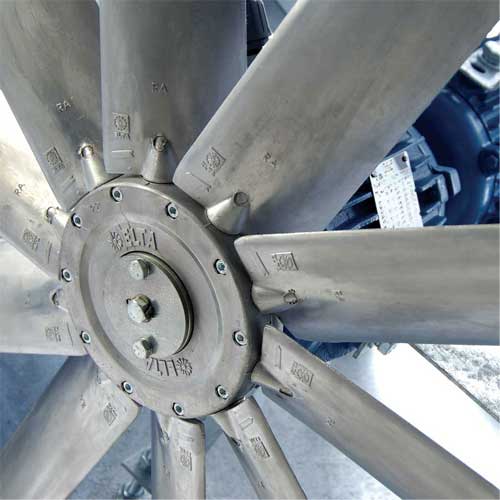

High efficiency adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium. Increased blade chord and twist provides 7% higher efficiency reducing overall energy consumption. The use of contra-rotating impellers allow operation at higher pressures within a smaller fan diameter.

Guides & Manuals
Elta Turboflow TF630 Circular Duct Fan Single Phase EC - 630mm Datasheet
Elta Turboflow TF630 Circular Duct Fan Single Phase EC - 630mm Installation
